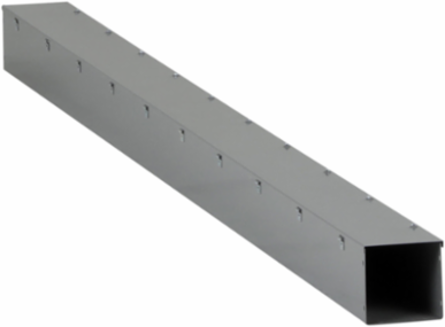

Square D LDB810 Square-Duct Wireway 8 Inch x 8 Inch 10 Feet Long Hinged Cover NEMA 1
- MPN: LDB810
- UPC: 785901200284
- PPN: SCH-LDB810
CAD
$749.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 8 inch by 8 inch and 10 feet long. This wireway is constructed of 14 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct wireway is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Product Certifications
- CSA || UL listed
- Range Of Product
- SQUARE-Duct
- Nema Degree Of Protection
- NEMA 1
- Trunking Length
- 10 ft
- Trunking Dimension
- 8 x 8 in
Cover Typehinged cover
Enclosure Materialsteel 14 gauge without knock-outs
Surface Finishgrey polyester powder ANSI 49
Product Or Component Typestraight length
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
