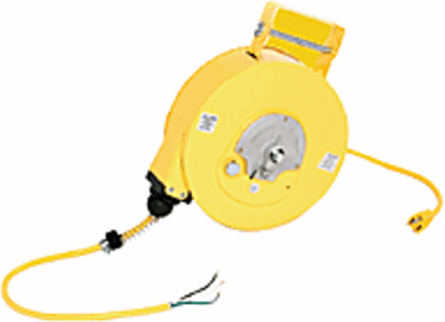

Woodhead 945-1547 Standard Cord Reel, 16/3 SJTOW, 35.0' Cord Length, 15A NEMA 5-15
- MPN: 945-1547
- UPC: 078678835149
- PPN: WOD-945-1547
CAD
$1678.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Standard Cord Reel, 16/3 SJTOW, 35.0' Cord Length, 15A NEMA 5-15
Documentation & Downloads
Specifications
Material Info
| Engineering Number | 945-1547 |
|---|
Agency Certification
| UL | E22769 |
|---|
Electrical
| Lamp Wattage - Maximum | N/A |
|---|---|
| Current - Maximum per Contact | 6.0A |
| GFCI | No |
| Lamp Type | N/A |
| Cord Type | 16/3 SJTOW |
|---|---|
| On/Off Switch | No |
| Voltage - Maximum | 120V |
| Bulb Included | N/A |
Physical
| Material - Housing | Steel |
|---|---|
| Material - Coating | Powder Coating |
| Cord Length | 10.67m (35.0') |
| Drum Lock | Ratchet |
| Number of Conductors | 3 |
| Number of Receptacles | 1 |
| Cable Movement | Ratchet Lock |
|---|---|
| Retraction Weight | 0.9kg (2.0 lb) |
| Primary Cord/Cable Entry | N/A |
| Mounting Style | Swinging |
| Wire Size AWG | 16 |
| Packaging Type | Carton |
General
| Type | Cord Reel |
|---|---|
| Duty | Standard |
| Product Family | Electric Reels |
| Enclosure Rating | NEMA 1 |
| Cable Length | 0.457m (1.50') |
| Overview | Electric Reels |
| Height | 0.32 (12.62") |
| NEMA Configuration | NEMA 5-15 |
| Product Literature Order No | 987650-8061 |
|---|---|
| Width | 13.06mm (5.160") |
| Product Name | Super-Safeway™ |
| Series | 130090 |
| Depth | 0.24m (9.59") |
| UPC | 78678835149 |
| Comments | Ratchet Lock (ON/OFF Switchable) |
