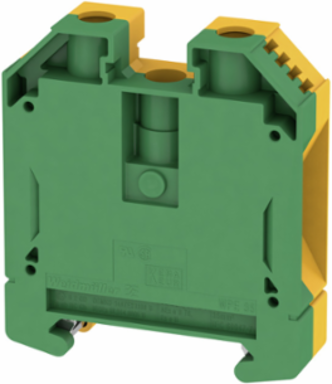

Weidmuller 1010500000 WPE 35
- MPN: 1010500000
- PPN: WDM-1010500000
CAD
$18.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PE terminal, Screw connection, 35 mm², 4200 A (35 mm²), Green/yellow
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CSA, CSAEX, CURUSEX, DEMKOATEX, DNV GL, EAC, GERMLLOYD, IECEXULD, INMETRO, KEMAKEUR, LLOYDSREG, MARITREG, NEMKO, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 16 mm |
|---|---|
| Height | 56 mm |
| Depth | 62.5 mm |
| Depth including DIN rail | 63 mm |
| Net weight | 80.2 g |
| Width (inches) | 0.63 inch |
|---|---|
| Height (inches) | 2.205 inch |
| Depth (inches) | 2.461 inch |
| Weight | 82.84 g |
Dimensions
| TS 35 offset | 32 mm |
|---|
Csa Rating Data
| Certificate No. (CSA) | 200039-1057876 |
|---|---|
| Wire cross section min. (CSA) | 12 AWG |
| Wire cross section max. (CSA) | 2 AWG |
|---|
Additional Technical Data
| Explosion-tested version | Yes |
|---|---|
| Interlock | for screw fixing |
| Open sides | closed |
| Installation advice | when screwed in |
|---|---|
| Number of similar terminals | 1 |
| Type of mounting | when screwed in |
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | Green/yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000901 |
|---|---|
| eClass 9.0 | 27-14-11-41 |
| eClass 10.0 | 27-14-11-41 |
| ETIM 7.0 | EC000901 |
|---|---|
| eClass 9.1 | 27-14-11-41 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Screw connection, With PE connection, in closed state |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | Yes |
| End cover plate required | No |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | Yes |
| N-function | No |
| PEN function | Yes |
Temperatures
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
|---|---|
| Storage temperature, min. | 10 °C |
| Continuous operating temp., min. | -60 °C |
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
Pe Rating Data
| Rated short-time current | 4200 A (35 mm²) |
|---|---|
| Tightening torque range for fixing screw | 1.2...2.4 Nm |
| Centre screw on PE terminals | M 4 |
|---|---|
| PEN function | Yes |
Rating Data
| Rated cross-section | 35 mm² |
|---|---|
| Standards | IEC 60947-7-2 |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Pollution severity | 3 |
| Rated voltage to adjoining terminal | 800 V |
|---|---|
| Volume resistance according to IEC 60947-7-x | 0.26 mΩ |
| Rated impulse withstand voltage to adjacent terminal | 8 kV |
Rating Data Iecex/Atex
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
|---|---|
| Wire cross section max. (ATEX) | 35 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Ex 2014/34/EU label | II 2 G D |
| Certificate No. (IECEX) | IECEXULD14.0005U |
|---|---|
| Wire cross section max. (IECEX) | 35 mm² |
| Marking EN 60079-7 | Ex eb II C Gb |
Conductors For Clamping (Rated Connection)
| Blade size | 6.5 x 1.2 mm |
|---|---|
| Clamping range, min. | 2.5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Connection direction | on side |
| Number of connections | 2 |
| Tightening torque, min. | 5 Nm |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section, finely stranded, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 2.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Clamping range, max. | 35 mm² |
|---|---|
| Clamping screw | M 6 |
| Connection cross-section, stranded, min. | 2.5 mm² |
| Gauge to IEC 60947-1 | B8 |
| Stripping length | 18 mm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, min. | AWG 12 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 35 mm² |
| Wire connection cross-section, finely stranded, min. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 2.5 mm² |
Ul Rating Data
| Certificate No. (UR) | E60693 |
|---|---|
| Conductor size Factory wiring min. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 12 AWG |
| Conductor size Factory wiring max. (UR) | 2 AWG |
|---|---|
| Conductor size Field wiring max. (UR) | 2 AWG |
