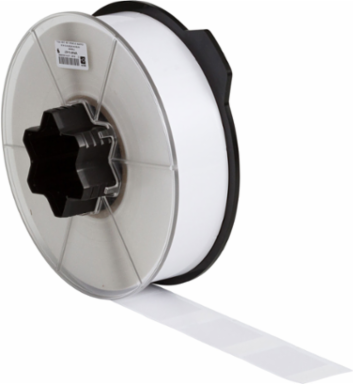

Brady WRAP-5-417 Wraptor™ Self-Laminating Labels Vinyl 2.5 in H x 1.5 in W Roll of 2200 Labels
- MPN: WRAP-5-417
- UPC: 754473615482
- PPN: BRD-WRAP-5-417
- UNSPSC: 55121612
CAD
$673.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Keep your wire identification secure with this self-laminating marker with extra-strong adhesive.
Features
- The extra-strong adhesive makes these markers ideal for small-gauge wires
- Features a white printable area and a clear tail that wraps around the marker
- Tail serves as an overlaminate to protect the print
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Data and Telecommunications Labeling; Electrical Labeling; Laboratory Labeling; Wire and Cable Labeling
- Color
- Clear/White
- Corner Type
- Rounded Corners
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- WRAPTOR™ Wire Marking System
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- Wraptor A6500
- Quantity per Row
- 1
- Recommended Ribbon Series
- R4300
- Shape
- Rectangle
- Suggested Ribbon Series
- R4300
- Total Quantity
- 2200
- Adhesive (Y/N)
- Yes
- Brady Material Number
- B-417
- Material
- Self-laminating Vinyl
- Overlaminate Included
- Overlaminate Included
- SAP B-Number
- B-417
- Dimensions (Metric)
- 38.10 mm W x 63.50 mm H
- Height (in/ft/yd)
- 2.5 in
- Label/Tape Size (in/ft/yd)
- 2.5 in H x 1.5 in W
- Maximum Service Temperature °F
- 158 °F
- Maximum Wire Diameter (mm/cm/m)
- 14.20 mm
- Minimum Service Temperature °C
- -40 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.28 in
- Minimum Wire Gauge
- 1/0 gauge
- Printable Area Dimensions (Metric)
- 19.05 mm H x 38.10 mm W
- Printable Area Height (mm/cm/m)
- 19.05 mm
- Printable Area Width (mm/cm/m)
- 38.10 mm
- Size - Width (mm)
- 38.10 mm
- Thickness (mm/cm/m)
- 0.107 mm
- Web Width (mm/cm/m)
- 45.47 mm
- Wire Diameter Range
- 0.28 in to 0.56 in
- Wire Gauge Range
- 1/0 gauge to 8 gauge
Brand NameBrady®
Compatible Surface TypesCurved
DiagramIcon 6 (D solid)
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityWraptor™ A6500 Wrap Printer Applicator
Quantity per Roll2200
Recommended RibbonR4302
Ribbon SeriesR4300
Software CompatibilityBrady Workstation, LabelMark
Total Qty per Pack2200 Piece(s) / Roll
Trade NameWraptor™
Adhesive TypeAcrylic
Label PropertiesSelf Laminating Labels & Wraps
Material PropertiesSelf-laminating
Resistance PropertiesChemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
Dimensions2.5 in H x 1.5 in W
Dimensions 22.5 in H x 1.5 in W
Height (mm/cm/m)63.50 mm
Maximum Service Temperature °C70 °C
Maximum Wire Diameter (in/ft/yd)0.56 in
Maximum Wire Gauge8 gauge
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter (mm/cm/m)6.70 mm
Printable Area Dimensions0.75 in H x 1.5 in W
Printable Area Height (in/ft/yd)0.75 in
Printable Area Width (in/ft/yd)1.5 in
Sign Size-General2.5 in x 1.5 in
Thickness (in/ft/yd)0.004 in
Vertical Repeat (mm)66.70 mm
Width (in/ft/yd)1.5 in
Wire Gauge1-8
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
