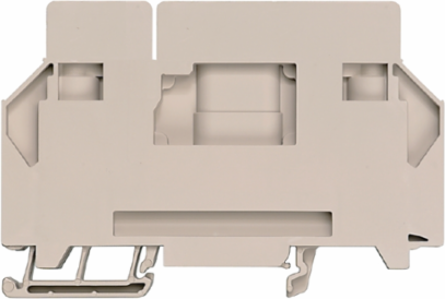

Weidmuller 1925030000 WTL 35/2STB
- MPN: 1925030000
- PPN: WDM-1925030000
CAD
$31.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Test-disconnect terminal, Screw connection, 35 mm², 500 V, 125 A, sliding, dark beige
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, EAC, KEMAKEUR
ROHSConform
Dimensions And Weights
- Width
- 16 mm
- Height
- 100 mm
- Depth
- 67.5 mm
- Weight
- 116 g
Width (inches)0.63 inch
Height (inches)3.937 inch
Depth (inches)2.657 inch
Net weight110.22 g
Additional Technical Data
- Number of similar terminals
- 1
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000902
- eClass 9.0
- 27-14-11-26
- eClass 10.0
- 27-14-11-26
ETIM 7.0EC000902
eClass 9.127-14-11-26
UNSPSC30-21-18-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Specifications
- Version
- Screw connection, Spacer, With sockets, in closed state
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredNo
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionYes
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- sliding
- Torque min. screw separator
- 1.7 Nm
Integral test socketYes
Torque max. screw separator2.4 Nm
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 35 mm²
- Rated current
- 125 A
- Volume resistance according to IEC 60947-7-x
- 0.26 mΩ
- Rated impulse withstand voltage
- 6 kV
Rated voltage500 V
Current at maximum wires125 A
Power loss in accordance with IEC 60947-7-x4 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 6.5 x 1.2 mm
- Clamping range, min.
- 4 mm²
- Connection cross-section, stranded, max.
- 35 mm²
- Connection direction
- on side
- Number of connections
- 2
- Type of connection
- Screw connection
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 35 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 35 mm²
- Wire connection cross-section, finely stranded, min.
- 4 mm²
- Wire connection cross-section, solid core, min.
- 4 mm²
Clamping range, max.35 mm²
Clamping screwM 6
Connection cross-section, stranded, min.10 mm²
Gauge to IEC 60947-1B9
Stripping length18 mm
Wire connection cross section, finely stranded, max.35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.4 mm²
Wire connection cross-section, solid core, max.16 mm²
