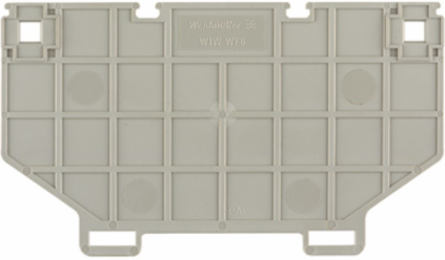

Weidmuller 1781220000 WTW WF6
- MPN: 1781220000
- PPN: WDM-1781220000
CAD
$3.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Bolt-type screw terminals, Seperation plate, dark beige, 3 mm
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 3 mm
- Height
- 101.8 mm
- Depth
- 58.45 mm
- Mounting dimension - width
- 2 mm
Width (inches)0.118 inch
Height (inches)4.008 inch
Depth (inches)2.301 inch
Net weight7.954 g
Additional Technical Data
- Installation advice
- Direct mounting
Snap-onNo
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Classifications
- ETIM 6.0
- EC000886
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC000886
eClass 9.127-14-11-33
UNSPSC30-21-18-27
System Specifications
- Version
- End and intermediate plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
