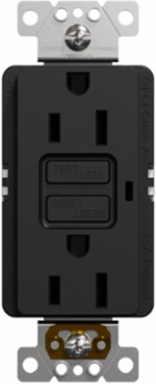

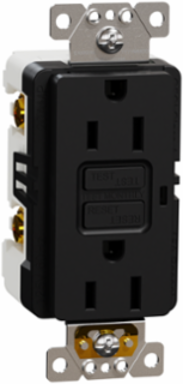

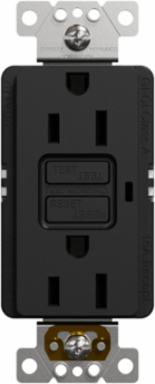

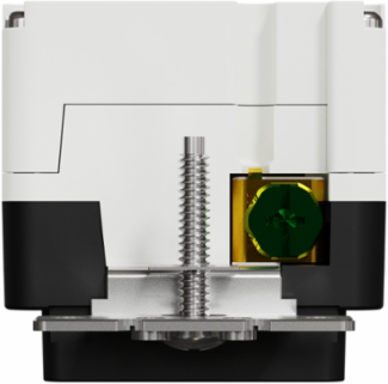

Schneider Electric SQR51101BK X Series GFCI Duplex Decorator Receptacle 15A 125V Matte Black
- MPN: SQR51101BK
- UPC: 785901544531
- PPN: SCH-SQR51101BK
- UNSPSC: 39121406
CAD
$29.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
X Series GFCI Duplex Decorator Receptacle 15A 125V Matte Black
Features
- Featuring built-in, tamper-resistant black shutters that blend invisibly into the core mechanics, this outlet effectively blocks foreign objects from making contact with live internal terminals. The smooth, internal mechanism is optimized to accommodate standard 2-prong and 3-prong appliance cords effortlessly, delivering full National Electrical Code (NEC ) compliance without the annoying insertion resistance common in older safety receptacles.
- rt of the sleek Square DTM X Series, this receptacle features a painted matte black finish that completely resists fingerprint smudges and is easy to wipe clean. The flush-facing decorator profile avoids the clunky aesthetic of traditional outlets, giving custom home builders, interior designers, and homeowners a premium, high-end finish that complements modern dark accent walls and contemporary cabinetry.
- Designed for a perfect mechanical fit with Square D X Series snap-on screwless or standard mid-sized plus wall plates (sold separately), this chassis establishes a modular benchmark for residential hardware. This flexible design allows you to refresh the room's color palette or swap out cover plates during future renovations in just seconds without ever disconnecting live wires or unmounting the underlying receptacle frame.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 41 mm |
|---|
Complementary Attributes
| Ie Rated Operational Current Ac | 15 A |
|---|
| Ue Rated Operational Voltage | 125 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, OM, SC |
|---|---|
| X Main Color Tint | black |
| Local Publishable Date | 2026-08-19 |
| Pre Comm Date | 2020-12-18 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Body Type | decorator |
| Earth Circuit | self earthing |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Modules | 1 |
| Outlet Standard | NEMA |
| Product Or Component Type | socket-outlet |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Socket Number | 2 |
| Surface Treatment | painted |
| Targeted Channel | distributor |

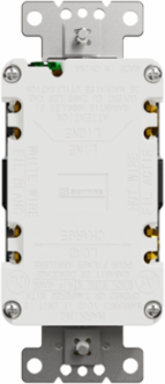

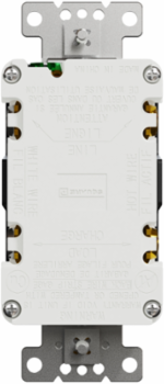

| Connections Terminals | phase and neutral 4 screw terminal copperearth 1 screw terminal copper |
| Width Nominal | 42 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 24 |
| Persona Type Names | End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician |
|---|---|
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Aesthetic Name | X Series |
| Device Application | power supply |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Outlet Poles Configuration | 2P + E |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Type | GFCI |
| Range | Square D X Series |
| Socket Additional Information | tamper resistant |
| Surface Finish | Matte |
| Sustainable Packaging | Yes |
| Main Color Tint | black |
| Height Nominal | 103 mm |
| Certificate Agency | cULus |
| Customs Code | 8536308000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | socket-outlet |
|---|
ETIM
| ETIM 8 | EC000125 |
|---|---|
| ETIM 10 | EC000125 |
| ETIM 9 | EC000125 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
