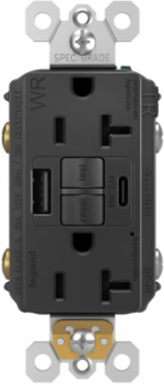

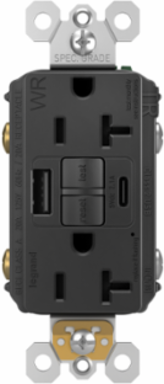

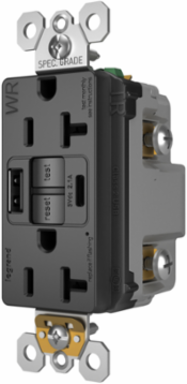

Radiant 2097TRWRUSBACBK Tamper-Resistant Weather-Resistant 20A GFCI Outlet with USB Ports, Black, 4.2 Inch Height
- MPN: 2097TRWRUSBACBK
- UPC: 785007377873
- PPN: P-S-2097TRWRUSBACBK
CAD
$114.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Enjoy superior safety and the convenience of built-in USB charging, in a first-of-its-kind outlet! Perfect for adding modern connectivity anywhere, including areas of the home where ground fault protection is required. Also including tamper and weatherresistance, this model was designed for use on decks, patios, pool areas, and other outdoor spaces. Easily see and reset electrical trips right where they happen, while gaining two USB connections for keeping phones or tablets charged, no bulky adapter necessary. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- First outlet of its kind to add USB connection to a GFCI outlet for easier charging, anywhere
- Provides reliable ground fault protection for use in outdoor spaces, including patios, decks and pool areas. Includes a trip indicator light and reset button on the outlet for easy, accessible troubleshooting
- Includes traditional power outlets, as well as one USB Type-A and one USB Type-C port for convenient charging. Shares 2.0A charging capacity between both ports
- Self-tests every three seconds, ensuring continuous ground fault protection for greater safety. Additionally, in case of test failure, the indicator light (red LED) will flash to signal there is an issue and the outlet should be replaced
- Equipped with proven SafeLock™ feature which disconnects power to the outlet if any critical components are damaged for added protection
- Designed with weather-resistance for use in outdoor locations such as decks, patios and pool areas. *Must be installed in weatherproof enclosure per NEC requirements
- Protect children using a patented ““invisi-shutter”” system to prevent the insertion of foreign objects while maintaining a discreet, invisible effect. Meets NEC® Tamper-Resistant requirements

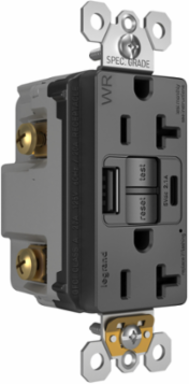

- Installs quickly thanks to a redesigned side wire cavity for easier access. Can provide ground fault protection to downstream outlets through feed-thru wiring

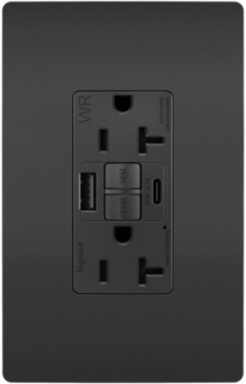

- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.03 in
- Height
- 4.2 in
- Voltage
- 125.0 V
- Country of Origin
- China
- Wattage
- 1875.0 W
- Number of USBs
- 2.0
- Indoor/Outdoor
- Both
- Number of Wires
- 3.0
- Outlet Type
- Self-Test
- Features
- USB-A Charging
- Is Tamper-Resistant
- Yes
- Outlet Type
- USB-Charging
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Outlet Type
- Weather-Resistant
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Jigsaw Channel Availability
- Distribution
- Color
- Black
- Product Line
- Pass & Seymour
Amperage20.0 A
Width1.73 in
Outlet TypeGFCI
StandardFEDSPEC
Mounting TypeBox
USB Amperage2.0 A
Number of Gangs1.0
FeaturesWeatherproof
Wall Plate IncludedNo
FeaturesUSB-C Charging
Is Weather ResistantYes
Number of Receptacles2.0
Outlet TypeTamper-Resistant
NEMA Configuration Code5-20R
Application SectorResidential
Wire Connection TypeScrew Terminals
Application SectorMulti-Dwelling Unit
Wire Connection TypeInternal Pressure Plates
FinishSatin
Special Features20A, GFCI, Hospital Grade, Tamper Resistant, Weather Resistant, Duplex, USB AC
