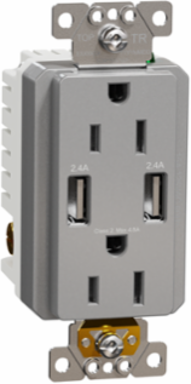

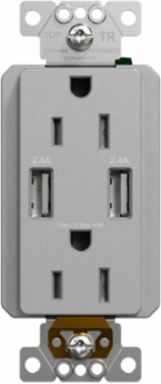

Schneider Electric SQR55141GY X Series 15A 125V Tamper Resistant USB Socket Outlet, 4.8A, Gray

MPN: SQR55141GY
UPC: 785901545644
PPN: SCH-SQR55141GY
UNSPSC: 39121406

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$49.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

X Series 15A 125V Tamper Resistant USB Socket Outlet, 4.8A, Gray

Features

Charge two devices at once with USB Outlets type A and type C ports
Child-safe design, with tamper-resistant shutters
Sold individually
Easy to clean
Wall plate required, sold separately

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Depth	45 mm

Physical Attributes

Color	Gray

Complementary Attributes

Integrated Connection Type	2 socket-outlet 15 A2 USB type A 2.4 A

Ue Rated Operational Voltage	125 V

Important Information Attributes

Persona Type Ids	EUA, LC, SC
Local Data Status	Publishable
Pre Comm Announcement Date	2020-10-30
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Residential
Aesthetic Name	X Series
Earth Circuit	self earthing
Market Segment	commercial
Mounting Mode	by screws
Network Type	AC
Number Of Modules	1
Outlet Standard	NEMA
Product Or Component Type	socket-outlet with USB charger
Range	Square D X Series
Socket Additional Information	tamper resistant
Sustainable Packaging	Yes

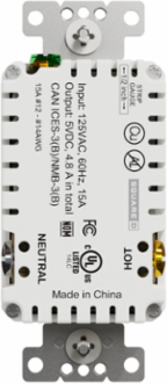

Connections Terminals	phase and neutral 2 screw terminalearth 1 screw terminal
Width Nominal	44 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	24

Persona Type Names	Consumer, Contractor, Electrician
Local Publishable Date	2026-08-19
Pre Comm Date	2020-12-18
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Device Application	power supply
Energy Efficiency Optimized	False
Material	plastic: strapmetal: fixing frame
Network Frequency	60 Hz
Number Of Gangs	1 gang
Outlet Poles Configuration	2 x 2P + E
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	1 piece
Returnability	Yes
Surface Finish	Matte
Targeted Channel	distributor
Height Nominal	103 mm
Certificate Agency	cULus
Customs Code	8504409510

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes

Reach Regulation	Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
