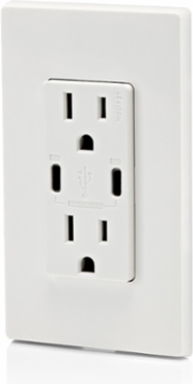

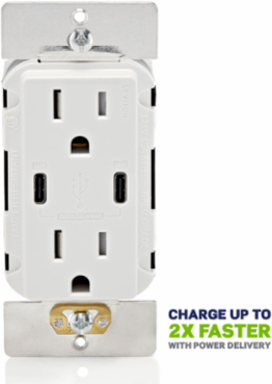

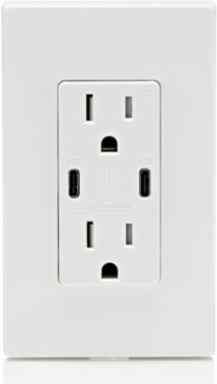

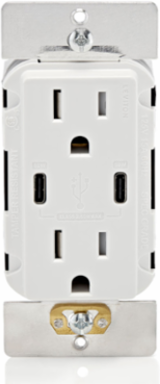

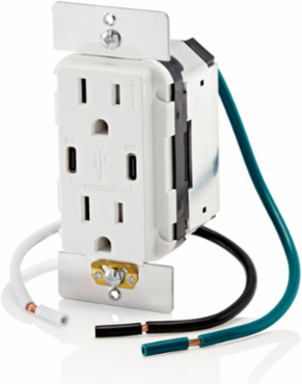

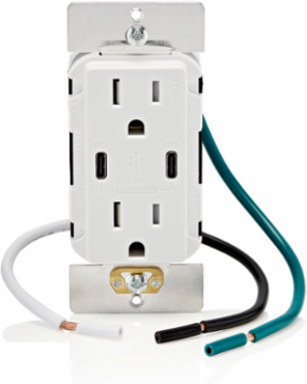

Leviton T5636-W 60W USB Dual Type-C Power Delivery Wall Outlet Charger with 15A Tamper-Resistant Outlet
Leviton T5636-W 60W USB Dual Type-C Power Delivery Wall Outlet Charger with 15A Tamper-Resistant Outlet
- MPN: T5636-W
- UPC: 078477471517
- PPN: LEV-T5636-W
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$141.75/ EA
Description
60W (6A) USB Dual Type-C/C Power Delivery Wall Outlet Charger with 15A Tamper-Resistant Outlet - White
Features
- Your time matters. Charge for minutes, enjoy for hours! The most advanced USB in-wall charger on the market with up to 2X the charging power with PD-enabled devices. Also compatible with non-PD devices as well as Type A devices (adapter required) Up to 60W charge on a single port when connected to a PD-enabled device, up to 30W charge per port (60W total) when both USB ports are in use Maximum charging outputs: 5V/3A, 9V/3A, 15V/3A, 20V/3A with a maximum power output of 60W USB Type-C provides faster charging and is emerging as the standard port on many phones, and tablets, such as iPhones, iPads, Samsung Galaxy, Samsung Tabs, Google Pixel and More Compatible with USB 3.1, 3.0, 2.0, 1.1 devices Smart chip recognizes and optimizes the charging requirements of individual devices No data transfer capability Overcurrent protection helps protect the electronics from receiving too much power, which can damage the device Internal thermoregulator prevents the electronics from overheating Tamper-resistant outlets block access by most non-rated/foreign objects to help keep children safe For new construction and retrofit installations, an extra deep electrical box (20 cu. in.) or wallbox extender is required Use with Decora wallplate or Decora Plus screwless wallplate (sold separately)
- POWERFUL – 60W charge on a single port. Up to 2x the charging power with PD-enabled devices
- INNOVATIVE – USB Type-C or USB-C provides faster charging and is the new standard port on many phones, tablets and laptops
- ENHANCED SAFETY – Overcurrent protection helps protect electronic devices from over charging/heating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets
- FAST CHARGING – Smart chip ensures each device gets the power level it needs to charge fast and efficiently
Specifications
- Voltage
- 125 VAC
- Power Output
- 60W
- Operating Temperature
- -10°C to 40°C
- Tamper Resistant
- Yes
- Strap Material
- Steel
- Flammability
- Rated V-0 per UL 94
- Grounding
- Grounding
- UL 498
- Yes
- Listed
- cCSAis
- FCC Part 15
- Class B
- Color
- White
- Wallplate
- Included
Amperage15 A
NEMA5-15R
Wire3
Power DeliveryYes
MaterialThermoplastic, Zinc-Plated Steel
GradeResidential/Commercial Specification Grade
TerminationWire Leads
UL 1310Yes
NOM057
RoHS CompliantFalse
BrandDecora
Country of OriginMexico (Pending)
