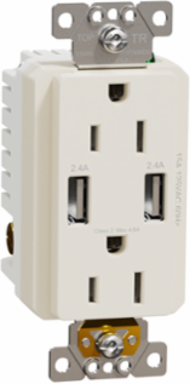

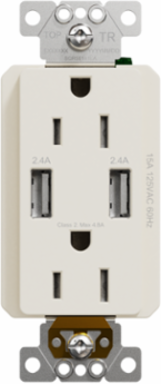

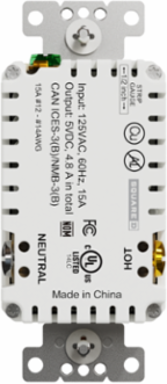

X Series 15A 125V Tamper Resistant USB Outlet, Light Almond, 4.8A
X Series 15A 125V Tamper Resistant USB Outlet, Light Almond, 4.8A
X Series 15A 125V Tamper Resistant USB Outlet, Light Almond, 4.8A
Square D

Square D SQR55141LA X Series 15A 125V Tamper Resistant USB Outlet, Light Almond, 4.8A

  • MPN: SQR55141LA
  • UPC: 785901546177
  • PPN: SCH-SQR55141LA

CAD

$46.78

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

X Series residential wiring devices USB charger/receptable offers an array of new features, such as flush mounting, easy installation, and connectivity. Users can plug 2 USB cables and 2 power cords at the same time for applications where power density is important. This device supports 5 volts DC and up to 2.4A per USB A port (4.8A total) to quickly charge modern electronic devices. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, its mounting mode is made by screws. It is made of metal and plastic making it resistant and durable. This USB receptacle has a light almond frame. It is tamper resistant with invisible black shutters and it features protective painted surface treatment. This USB receptacle benefits from an elegant matt finishing, constituting an added-value for your interior design. It has a width of 44mm, a height of 103mm and a depth of 45mm. By satisfying the UL 1310 and the UL 498 standard, this USB receptacle is cUlus certified.

Documentation & Downloads

Specifications

Key Specifications

Aesthetic Name
X Series
Range
Square D X Series
Product Or Component TypeUSB charger + socket-outlet
Colourlight almond

Complementary

Network Frequency
60 Hz
Number Of Modules
1
Number Of Gangs
1 gang
Surface Finish
matt
Connections - Terminals
phase and neutral 2 screw terminal || earth 1 screw terminal
Mounting Mode
by screws
Integrated Connection Type
2 socket-outlet 15 A || 2 USB type A 2.4 A
Quantity Per Set
1 piece
Width
44 mm
Device Application
power supply
Outlet Poles Configuration
2 x 2P + E
Height103 mm
Device Mountingflush
Network TypeAC
Socket Additional Informationtamper resistant
Device Presentationmechanism with fixing frame
Earth Circuitself earthing
Materialplastic: strap || metal: fixing frame
Outlet StandardNEMA
Depth45 mm
[Ue] Rated Operational Voltage125 V

Environment

Product Certifications
cULus
StandardsUL 498 || UL 1310 || FCC part 15 class B || ICES-003

Contractual warranty

Warranty
2 years

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2011022_V1
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
ENVEOLI2011022_V1
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
