Telemecanique Sensors XCKMR54D1H29EX Limit switch, Limit switches XC Standard, XCKMR, square rod 6 mm crossed, 2 x (2 NC), ATEX/IECEx
- MPN: XCKMR54D1H29EX
- PPN: TES-XCKMR54D1H29EX
CAD
$2634.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

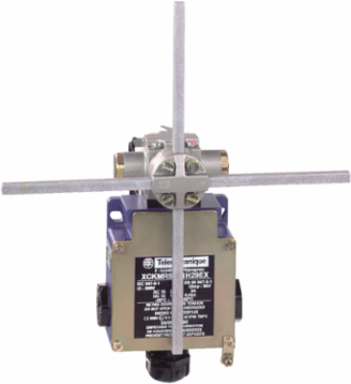

This product is part of the ATEX D Standard range, an offer of limit switches for explosive atmospheres. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has 4 normally closed, slow-break, staggered contacts with positive opening operation. It is a limit switch with a rated insulation voltage of 500V. It is furnished with screw clamp terminals for electrical connection. It is an IP66 and IP67 rated product. It has a stay put crossed rods lever, switch actuation by any moving part and supports lateral approach, 2 directions. It offers long mechanical life with mechanical durability of about 2 million operating cycles. This rotary head limit switch is made of Zamak. Its dimensions are 118mm (Width) x 59mm (Depth) x 77mm (Height). It is intended used for certified explosive hazardous dust location applications. This product is certified by INERIS 04ATEX0014X and IEC-Ex INE 17.0020X. It meets EN/IEC 60079-31 and EN/IEC 60079-0 standards.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- rotary
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Fixing Mode
- by the body
- Product Or Component Type
- limit switch
- Ip Degree Of Protection
- IP66 IEC 60529
- Switch Actuation
- by any moving part
- Series Name
- standard format
- Body Type
- fixed
- Contacts Insulation Form
- Zb
- Contact Operation
- slow-break, staggered
- Cable Entry Number
- 1 tapped entry M20 x 1.5 cable gland (included) 7-13 mm || 2 tapped entry M20 x 1.5 cable gland
- Minimum Torque For Tripping
- 0.5 N.m
- Number Of Poles
- 4
Range Of ProductTelemecanique Limit switches XC Standard
Number Of Steps2
Type Of Operatorstay put crossed rods lever metal square rod 6 mm, L = 200 mm
Materialmetal
Head Typerotary head
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition2 x (2 NC)
Positive Openingwith
Contact Block Per Direction [Control Circuit]1 per direction
Product Specific Applicationfor hoisting and mechanical handling applications
Maximum Actuation Speed1.5 m/s
Device Short NameXCKMR
Complementary
- Maximum Displacement Angle
- 180 ° || -180 °
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Marking
- II2 D-Ex tb IIIC T85°C Db IP66/67
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 VNF C 20-040 group C || 500 V 3)IEC 60947-1 || 500 V 3)VDE 0110
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A EN 60947-5-1 || A300, AC-15 (Ue = 240 V), Ie = 3 A IEC 60947-5-1 appendix A || Q150, DC-13 (Ue = 125 V), Ie = 0.55 A EN 60947-5-1 || Q150, DC-13 (Ue = 125 V), Ie = 0.55 A IEC 60947-5-1 appendix A
- Depth
- 59 mm
Height77-77 mm
Minimum Actuation Speed6 m/min
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
Mechanical Durability2000000 cycles
Width118 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Environment
- Product Certifications
- INERIS 04ATEX0014X || IEC-Ex INE 17.0020X
- Standards
- EN/IEC 60079-31 || EN/IEC 60079-0
- Shock Resistance
- 50 gn IEC 60068-2-27
- Directives
- 2014/34/EU - ATEX directive
- Protective Treatment
- TC
Ambient Air Temperature For Operation-20-60 °C
Dust Zonezone 21 - 22
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Electrical Shock Protection Classclass I IEC 60536 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
