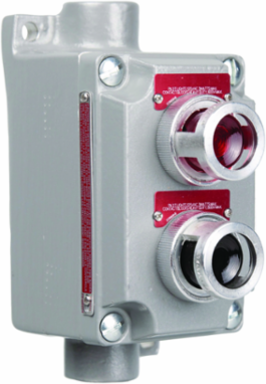

Killark XCS-4B30RL-GL Aluminum Control Station with Dual 120V Pilot Lights, 3 Inch Width, 0.025 A
- MPN: XCS-4B30RL-GL
- UPC: 783936891163
- PPN: HBL-XCS-4B30RL-GL
- UNSPSC: 39122216
CAD
$1073.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XCS Series - Aluminum Feed-Thru Double 120V Pilot Light Control Station- Red Lens And Green Lens With Nameplates To Be Specified - Hub Size1/2Inch
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Key Specifications
- Country of Origin
- United States
- Depth
- 4-11/32 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Amperage Rating
- 0.025 A
- Color
- Red-Green
- Type
- Aluminum Box And Cover With Two Pilot Lights
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CONT STA P.L. (1)RED (1)GREEN
- Harmonization Code
- 8531809051
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 2.9
- Series
- XCS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Back Box TypeSWB
Width3.000 in
ActuatorDouble Pilot Light
ApplicationHazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
Special FeaturesKillark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Frequency Rating50/60 Hz
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE53360
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936891163
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
