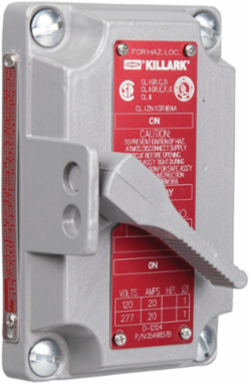

Killark XS-1C Aluminum Tumbler Switch Cover 1-Pole 20A, Dimensions 3.5 x 7.875 x 3.25 Inch
Killark XS-1C Aluminum Tumbler Switch Cover 1-Pole 20A, Dimensions 3.5 x 7.875 x 3.25 Inch
- MPN: XS-1C
- UPC: 783936925004
- PPN: HBL-XS-1C
- UNSPSC: 39122211
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$251.06/ EA
Description
XS Series - Aluminum 1-Pole Tumbler Switch Cover With Device - 20A
Features
- Front lever rotary operated switch assemblies.
- Standard provisions for padlocking in either “ON” or “OFF” position.
- The lever is connected to a threaded stainless steel shaft which passes through the cover.
- Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Number of Poles
- 1
- Special Features
- Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Country of Origin
- China
- Color
- Gray
- Dimensions
- 3.5 in x 7.875 in x 3.25 in
- Height
- 3.25 in
- Weight
- 1.098 lb.
- Action
- SPST
- Amperage Rating
- 20 A
- Frequency Rating
- 50/60 Hz
- Type
- Aluminum Tumbler Switch Cover
- Description - Invoice
- HAZ LOC DIV1 1P SWITCH & COVER
- Harmonization Code
- 8536509901
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 1.098
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Size3.5 in x 7.875 in x 3.25 in
ARRA CompliantContact Manufacturer
Back Box TypeSWB
Depth4-1/4
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length3.5 in
Width7.875 in
ActuatorLever
ApplicationUsed where making, breaking, or changing connections in an electric circuit is required.
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11712
UL File NumberE53360
SeriesXS Series
Carton - SCC-14 Next Lower Level Sub Pack00783936925004
Certifications
- EU RoHS Indicator
- Contact Manufacturer
