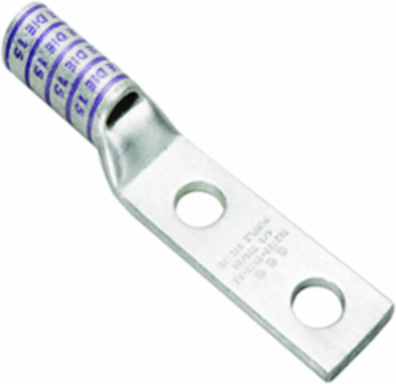

Burndy YAZ382N Long Length Barrel YAZ382N

Name: Burndy YAZ382N Long Length Barrel YAZ382N
Brand: Burndy
SKU: BUR-25019170
Price: 172.22 CAD
Availability: BackOrder

CAD

$172.22

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

COPPER COMPRESSION TERMINAL.

Dimension - B Length fraction	2-13/16 in
Dimension - Bolt Hole Size inch	0.56 in
Dimension - Hole Size inch	0.56 in
Dimension - L Length Overall mm	171 mm
Dimension - N inch	0.62 in
Dimension - Pad Width inch	1.84 in
Dimension - Stud Size inch	1/2
Physical Attribute - Tongue Angle	Straight

Dimension - B Length inch	2.81 in
Dimension - Bolt Size fraction	1/2
Dimension - Hole Size mm	14 mm
Dimension - Length Overall inch	6.72 in
Dimension - Outside Diameter inch	1.25 in
Dimension - Strip Length inch	2-7/8
Dimension - Z inch	0.64 in

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Industry Standard(s)	UL468A-468B
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
Standards - Industry Standards Met	UL468A-468B
UL Listed	Yes

Conductor - Copper Str Size	700 kcmil

Conductor - Material	Copper

Color Code	Pink
Die Index	400
Feature - Barrel Type	Long
Physical Attribute - Number of Holes	2
Plating Type	Tin - Electro Plated
Type	Long Barrel, Skive, Tin Plated
UPC 12 Digit	7818102279922
