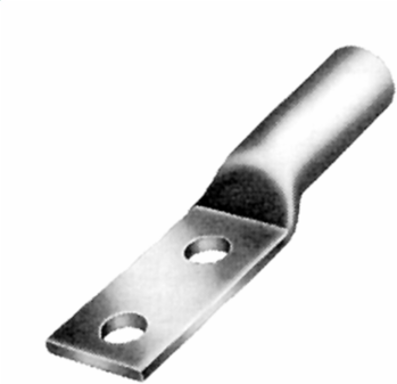

Burndy YJA12502N Copper Terminal Lug 1250 kcmil, 7.75 Inch Long, 2 Holes, 35 kV Rating

MPN: YJA12502N
UPC: 781810447840
PPN: BUR-10071932

$1555.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Copper Terminal Lug 1250 kcmil, 7.75 Inch Long, 2 Holes, 35 kV Rating

Specifications

Current Related

Rating - KVA	35 kV
Voltage - Maximum	35000

Rating - Minimum Voltage	600

Dimensions

Dimension - B Length fraction	2-3/4 in
Dimension - D inch	3.06 in
Dimension - Hole Size mm	14 mm
Dimension - L Length Overall mm	197 mm
Dimension - N inch	0.62 in
Dimension - Pad Width inch	2.65 in
Physical Attribute - Tongue Angle	Straight

Dimension - B Length inch	2.78 in
Dimension - Hole Size inch	0.56 in
Dimension - Inside Diameter inch	1.33 in
Dimension - Length Overall inch	7.75 in
Dimension - Outside Diameter inch	1.88 in
Dimension - Z inch	0.69 in

Certifications and Compliance

Standards - RoHS Compliance Status	CM

Conductor Related

Conductor - Copper Str Size	1250 kcmil

Conductor - Copper Str Size Range	1250 kcmil

General

Connector Type	Terminal
Feature - Barrel Style	Chamfered
Item Type	4D
Physical Attribute - Number of Holes	2
Plated	Y
Temperature Rating	194
UPC 12 Digit	7818104478400
