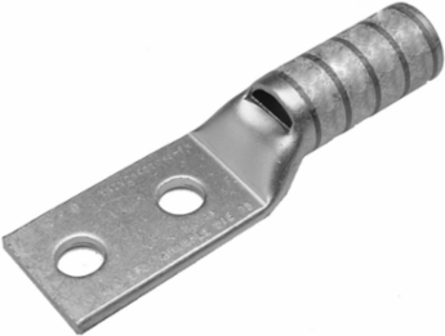

Burndy YAZ442NTCFX HYLUGTM Copper Terminal, Long Barrel, 2 Holes, 1/2 Inch Bolt, 750 kcmil Flex
- MPN: YAZ442NTCFX
- UPC: 781810228692
- PPN: BUR-25019240
CAD
$195.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2 Hole HYLUG Cu Compr Terminal, Long Brrl, W/ Insp Window, 777.7(1925/#24) DLO, 750 kcmil Flex, 1/2" stud, Yellow, L115 Index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 3 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 180 mm
- Dimension - N inch
- 0.62 in
- Dimension - Pad Width inch
- 2.19 in
- Dimension - Z inch
- 0.65 in
Dimension - B Length inch3.00 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch7.09 in
Dimension - Outside Diameter inch1.50 in
Dimension - Strip Length inch3-1/16
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 777.7 (1925/#24)
- Conductor - Copper Flex H Size
- 750
- Conductor - Copper Flex K Size
- 750
- Conductor - Material
- Copper
Conductor - Copper Flex G Size750
Conductor - Copper Flex I Size750
Conductor - Copper Flex M Size750
General
- Color Code
- Yellow
- Die Index
- L116
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin-Electro plated
- Type
- Long Barrel, Skive
- UPC 12 Digit
- 7818102286922
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
PlatedYes
Trade NameHYLUG™
UPC781810228692
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 6
