Weidmuller

Weidmuller 1706110000 ZAP/TW7

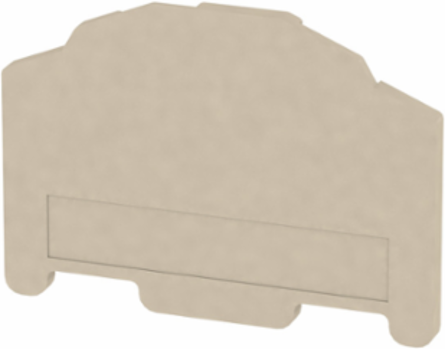

ZAP/TW7
  • MPN: 1706110000
  • PPN: WDM-1706110000

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.83/ EA

Description

Z-series, End plate, Seperation plate

Specifications

Approvals

ROHS
Conform

Dimensions And Weights

Width
2.5 mm
Height
50.5 mm
Depth
36.2 mm
Net weight
2.84 g
Width (inches)0.098 inch
Height (inches)1.988 inch
Depth (inches)1.425 inch

Additional Technical Data

Installation advice
Direct mounting
Snap-onYes

Material Data

Material
Wemid
UL 94 flammability rating
V-0
Colourdark beige

Classifications

ETIM 6.0
EC000886
eClass 9.0
27-14-11-92
eClass 10.0
27-14-11-92
ETIM 7.0EC000886
eClass 9.127-14-11-33
UNSPSC30-21-18-27

System Specifications

Version
End and intermediate plate

Temperatures

Storage temperature, max.
40 °C
Storage temperature
10 °C...40 °C
Continuous operating temp., max.
120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
