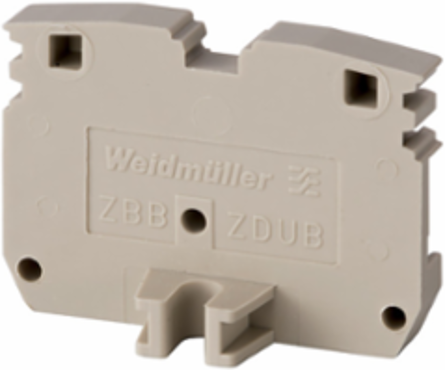

Weidmuller 1704740000 ZBB ZDUB
- MPN: 1704740000
- PPN: WDM-1704740000
CAD
$0.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Accessories, Fixing bracket
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 5.1 mm |
|---|---|
| Height | 33.2 mm |
| Depth | 23.8 mm |
| Net weight | 2.56 g |
| Width (inches) | 0.201 inch |
|---|---|
| Height (inches) | 1.307 inch |
| Depth (inches) | 0.937 inch |
Additional Technical Data
| Installation advice | Direct mounting, Busbar |
|---|
| Snap-on | No |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Classifications
| ETIM 6.0 | EC000886 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC000886 |
|---|---|
| eClass 9.1 | 27-14-11-33 |
| UNSPSC | 30-21-18-27 |
System Specifications
| Version | Mounting block |
|---|
| End cover plate required | Yes |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
