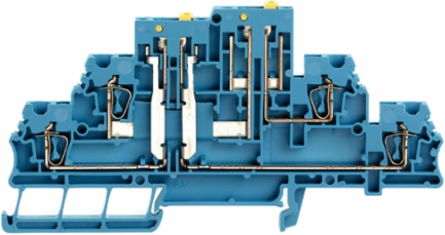

Weidmuller 1798330000 ZDTR 2.5 BL

MPN: 1798330000
PPN: WDM-1798330000

$23.39

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Test-disconnect terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 400 V, 16 A, Pivoting, blue

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CSA, DNV GL, EAC, UR
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	5.1 mm
Height	117 mm
Depth	67 mm
Depth including DIN rail	68 mm

Width (inches)	0.201 inch
Height (inches)	4.606 inch
Depth (inches)	2.638 inch
Net weight	20.99 g

Csa Rating Data

Certificate No. (CSA)	154685-1152892/327
Voltage size B (CSA)	300 V
Wire cross section min. (CSA)	26 AWG

Current size B (CSA)	10 A
Wire cross section max. (CSA)	12 AWG

Additional Technical Data

Explosion-tested version	No
Open sides	right

Installation advice	Direct mounting
Type of mounting	Snap-on

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	blue

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000897
eClass 9.0	27-14-11-20
eClass 10.0	27-14-11-20

ETIM 7.0	EC000897
eClass 9.1	27-14-11-20
UNSPSC	30-21-18-11

System Specifications

Version	Tension-clamp connection, Spacer, for plug-in cross-connector, One end without connector
Number of potentials	2
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 35
PE function	No

End cover plate required	Yes
Number of levels	2
Number of potentials per tier	1
PE connection	No
N-function	Yes
PEN function	No

Disconnect Terminals

Cross-disconnect	without
Slitting	Pivoting

Integral test socket	No

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Conductors For Clamping (Additional Connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.	2.5 mm²

Rating Data

Rated cross-section	2.5 mm²
Rated current	16 A
Standards	IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Rated voltage	400 V
Current at maximum wires	16 A
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV

Conductors For Clamping (Rated Connection)

Blade size	0.6 x 3.5 mm
Clamping range, min.	0.13 mm²
Gauge to IEC 60947-1	A2
Stripping length	10 mm
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²

Clamping range, max.	4 mm²
Connection direction	top
Number of connections	4
Type of connection	Tension-clamp connection
Wire connection cross section AWG, min.	AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

Ul Rating Data

Certificate No. (UR)	E60693
Conductor size Factory wiring min. (UR)	26 AWG
Conductor size Field wiring min. (UR)	26 AWG
Current size D (UR)	10 A
Voltage size D (UR)	300 V
