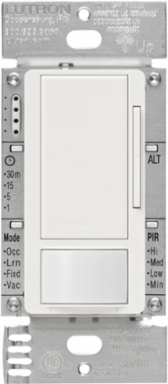

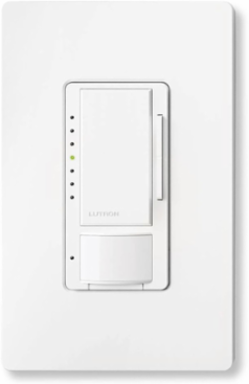

Lutron MS-Z101-WH Maestro 0-10V Dimmer Sensor, 8A Load, 180 Sensing Range, White Finish

Description

Features

• Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert
• Passive infrared sensors that automatically control the lights in an area
• These sensors detect heat from occupants moving within an area to determine when the space is occupied
• Combines a Maestro 0-10 V dimmer with an occupancy sensor
• Controls 1-10 VDC electronic fluorescent ballast or LED driver load types
• Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
• Can be set to auto-on/auto-off or manual-on/auto-off
• Adjustable timeout (1, 3, 5, 15, or 30 minutes)
• Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level
• Adjustable sensitivity level: High, med, low, min
• Off warning fades lights to off over a period of 10 seconds
• Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.)
• Adaptive switching algorithm for extended relay life
• Smart ambient light detection (ALD)
• Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches
• High-end trim and low-end trim to adjust maximum and minimum light levels
• Selectable dimming curve-linear or square law
• Miswire and incompatible load alert
