Lutron MS-OPS5M-WH Maestro 5A Occupancy Sensor Switch, White, 900 ft2 Coverage
- MPN: MS-OPS5M-WH
- UPC: 027557983570
- PPN: LUT-MS-OPS5M-WH
- UNSPSC: 39122236
CAD
$44.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Coordinating Claro Wall plate and Accessories sold separately. Let Lutron's Maestro Occupancy Sensor switch turn the lights or fan on and off for you. It's a simple, easy and low cost way to save energy and add automation to your home. Install a Maestro Sensor and lights/fan turn on when you enter the room and then turn off automatically after you leave. This sensor features XCT Sensing Technology which detects minor motion, such as typing at a desk or reading, ensuring sensor does not turn off inadvertently. Equipped with ambient light detection, you can customize your sensor to detect daylight so lights don't turn on with enough natural light in your room. Keeping the sleek design of the Maestro family, Lutron sensors will match the decor of any room in your home. Install a sensor in your bedroom so lights aren't left on mistakenly or in the bathroom for your exhaust fan. This Maestro Sensor works with any bulb type, including CFLs and LEDs or fans up to 3 Amp. This switch can also be easily programmed to function as a vacancy (manual-on) sensor.
Features
- Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required.

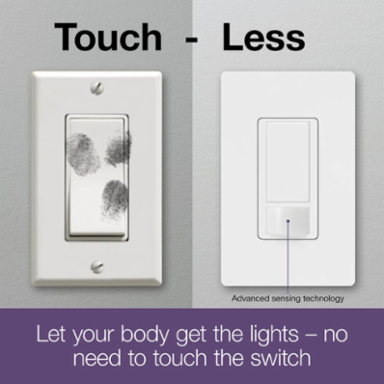

- Automatically turns the lights on when you enter the room and off when you leave
- Features XCT sensing technology which detects fine motion, such as typing at a desk or reading, ensuring lights do not turn off inadvertently
- Optional: senses daylight so lights do not turn on when there is enough natural light in the room
- Programmable time-out of lights - 1, 5, 15 or 30 minutes
- Works with all bulb types; up to 600W incandescent, halogen and electronic low-voltage, 450W magnetic low-voltage, 360W CFL/LED, 5 ballasts, 3A fans
- Can be used in single-pole or multi-location applications; great for larger rooms like garages, bathrooms and private offices
- Installs in as little as 15 minutes; no neutral required

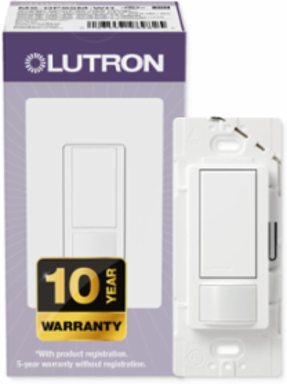

- Includes (1) maestro sensor switch; coordinating wallplate sold separately

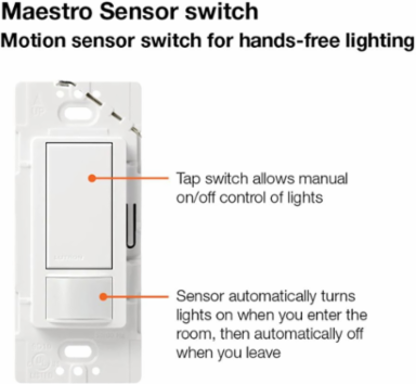

- Combines a Maestro switch with a passive infrared occupancy sensor
- Detects the heat from occupants moving within an area to determine whether the space is occupied
- Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
- Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view
- Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
- Can be set to auto-on/auto-off or manual-on/auto-off
- Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
- Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan

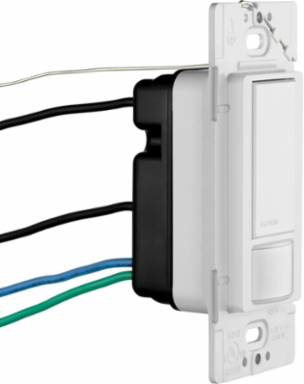

- Ground wire required
Documentation & Downloads
Specifications
Additional
| Load Rating | 5 A@120 VAC lights/3 A@120 VAC fan/light and fan |
|---|---|
| Voltage | 120 V~ 50/60 Hz |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Coverage Area | 900 ft2 (82 m2) major motion coverage, 400 ft2 (36 m2) minor motion coverage |
| Material | Plastic |
| Color | White |
| Wattage | 600 W incandescent/halogen/ELV, 450 W magnetic low-voltage, 360 W CFL/LED, 5 ballasts |
|---|---|
| Sensor Technology | Passive infrared motion detection with dependable Lutron XCT technology |
| Humidity | 0 to 90% non-condensing |
| Mounting | Wallbox |
| Finish | Glossy |
