Documentation & Downloads

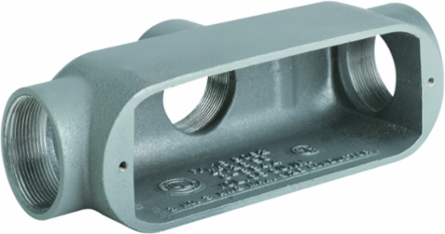

Killark OTB-5 Aluminum Conduit Body 1-1/2 Inch TB Hub, Raintight, 36 cu. in Volume
- MPN: OTB-5
- UPC: 783936530154
- PPN: HBL-OTB-5
- UNSPSC: 39131708
CAD
$223.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1-1/2" TB Hub, Aluminum O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 36 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 5.125 in
- Length
- 10.25 in
- Type
- Conduit Body
- Engineering Drawing 1 Display Text
- OTB-5 Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1-1/2" "TB" TYPE AL CONDUIT
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 1.63
- UL File Number
- E3397
- Series
- O Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions10.25 in x 5 in x 5.125 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FinishPowder Epoxy Paint
Hub Size1-1/2"
Special FeaturesTapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 36 cu. in.
Width5 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternTB
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936530154
NAICS Code3359323110
