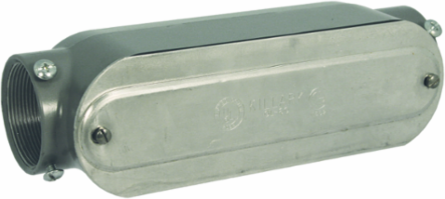

Killark COC-4CG 1-1/4 Inch C Hub Aluminum Combo Conduit Body with Cover & Gasket, 32 cu. in. Volume
- MPN: COC-4CG
- UPC: 783936067742
- PPN: HBL-COC-4CG
- UNSPSC: 39131708
CAD
$203.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1-1/4" C Hub, Aluminum Combo Conduit Body
Features
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 32 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit.
- Finish
- Powder Epoxy Paint
- Hub Size
- 1-1/4"
- Special Features
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 32 cu. in.
- Width
- 3 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- C
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.740 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2 EA
- NAICS Code
- 3359323110
Dimensions10 in x 3 in x 3 in
ColorGray
Height3 in
Length10 in
TypeConduit Body With Cover & Gasket
Cover TypeStamped
ARRA CompliantContact Manufacturer
Description - InvoiceCOMBO C CONUDIT BODY AL,CVR,GASK 1 1/4"
Harmonization Code7609000000
Lead Time42 wk
Order Multiple2 EA
Sub Class CodeD30D231
Gross Weight with Packaging1.87
UL File NumberE3397
SeriesCO Series
BOX SIZE5.000x9.250x6.500 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936067742
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
