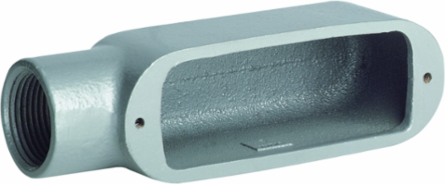

Killark OE-1 1/2 Inch Aluminum E Hub Conduit Body, Raintight, 5 Inch Length, 4 cu. in Volume
- MPN: OE-1
- UPC: 783936471013
- PPN: HBL-OE-1
- UNSPSC: 39131708
CAD
$38.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1/2" E Hub, Aluminum O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 4 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Hub Size
- 1/2"
- Special Features
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 4 cu. in.
- Width
- 2 in
- Engineering Drawing 1 Display Text
- OE-1 Engineering Drawing
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- E
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.800 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- NAICS Code
- 3359323110
Dimensions5 in x 2 in x 2 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height2 in
Length5 in
TypeConduit Body
Weight0.28 lb.
ARRA CompliantContact Manufacturer
Description - Invoice1/2" ALUM CONDUIT BODY TYPE E
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging0.28
UL File NumberE3397
SeriesO Series
BOX SIZE4.250x7.750x5.750 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783936471013
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
