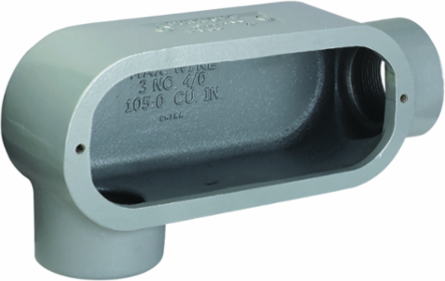

Killark LR18 Iron Conduit Body 1/2 Inch LR Hub, Gray, Powder Epoxy Finish, 10 in x 4.5 in x 3.75 in
Killark LR18 Iron Conduit Body 1/2 Inch LR Hub, Gray, Powder Epoxy Finish, 10 in x 4.5 in x 3.75 in
- MPN: LR18
- UPC: 783936481234
- PPN: HBL-LR18
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$90.38/ EA
Description
1/2" LR Hub, Iron Form 8 Conduit Body
Features
- Completely interchangeable with competative bodies, gaskets, and covers.
- Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing.
- Raintight when used with gasketed covers.
- Stainless steel screws on stamped and cast covers.
- Smooth integral wire bushings.
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 4.500 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 3.75 in
- Length
- 10 in
- Type
- Conduit Body
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- COND BODY,LR,GRAY IRON 1/2"
- Harmonization Code
- 7307110030
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 1.2
- UL File Number
- E3397
- Series
- Duraloy 8
- BOX SIZE
- 2.750x10.000x8.250 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936481234
- Master Pack Description
- Each
Dimensions10 in x 4.5 in x 3.75 in
Hazardous Rating(s)Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
ColorGray
Hub Size1/2"
Special FeaturesCompletely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Width4.5 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLR
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Certifications
- EU RoHS Indicator
- Contact Manufacturer
