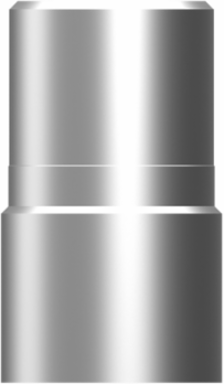

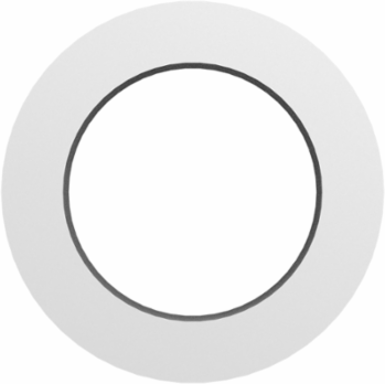

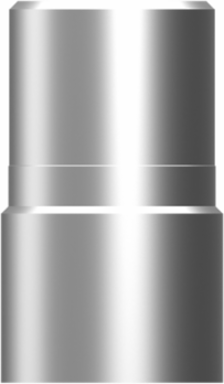

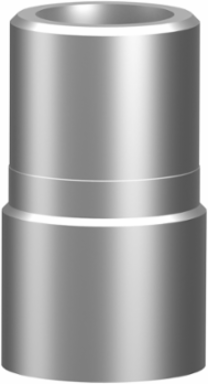

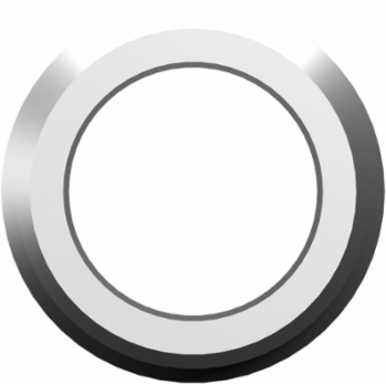

Schneider Electric XVZ00 Universal Mounting Accessory, Harmony XV4/XV6/XVB7 Modular Tower Light, Steel 1 2"NPT, Silver
- MPN: XVZ00
- PPN: SCH-XVZ00
- UNSPSC: 32151503
CAD
$55.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 1/2'' NPT adapter is part of the Harmony XVB7, XV6, and XV4 ranges, featuring modular tower lights designed for easy customer assembly. It is designed for easy mounting of a base module with bottom cable entry (a gasket and fixing screws are included). This accessory is an adapter for diameter 25 mm tubes. It features a 1/2-inch thread. It is impact, dust, water, and vibration resistant thanks to its IP66 rating, making it ideal for operation in harsh environments. Made from silver-colored steel, the 1/2'' NPT adapter measures 46.5mm high, has a diameter of 27mm, and weighs 101g. The Harmony XVB7 modular tower lights are visual or audible signaling units used for indicating, throughout 360°, the various states of a machine or installation. To simplify mounting, fixing plates, tubes, and brackets are available for separate purchase.
Features
- Elevated modern design
- Rationalized construction that reduces Stock-Keeping Units by 3X
- IP66, making it ideal for operation in harsh environments
- Configurable color combinations for wide applications
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|
| Weight | 107 g |
|---|
Physical Attributes
| Color | Silver |
|---|
Important Information Attributes
| Accessory Type | 1/2'' NPT adapter |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.10659062865916619 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 1 kg CO2 eq., 1.2868879578381893 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2025-02-06 |
| Return Indicator | Y |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2501029EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2445 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Cable Entry | bottom entry |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 46.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Carbon Footprint Of The Distribution Phase A4 | 0.037315464968756325, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.00059421521931091, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Pre Comm Date | 2025-02-06 |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Material | steel |
| Product Or Component Type | accessory |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Data Source | extrapolated product |
| Accessory / Separate Part Type | 1/2'' NPT adapter |
| Customs Code | 7307923030 |
| Functional Unit Description | The major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 87 |
Environment Attributes Main
| Product Compatibility | XVB7....., XV6....., XV4..... |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2501029EN |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | UL type 12 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-28 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 1.4313882666854227 |
| Environmental Disclosure | ENVPEP2501029EN |
| Ip Degree Of Protection | IP66 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2501029EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | accessory |
|---|
ETIM
| ETIM 8 | EC001259 |
|---|---|
| ETIM 10 | EC001259 |
| ETIM 9 | EC001259 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
