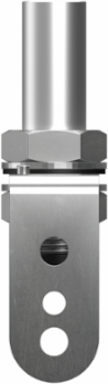

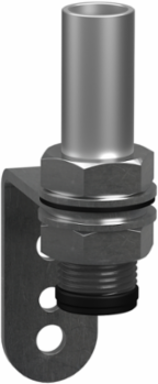

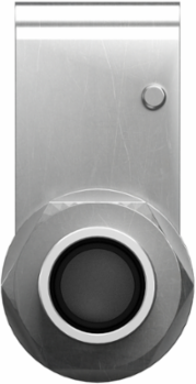

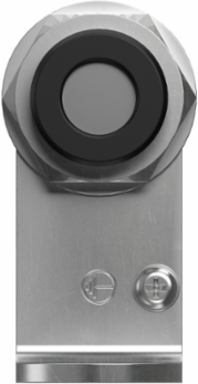

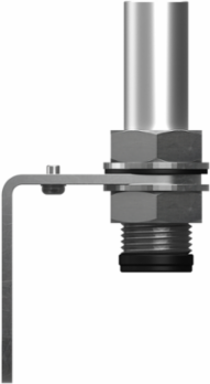

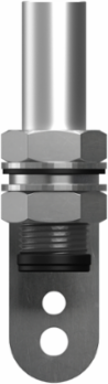

Schneider Electric XVZ100T Universal Mounting Accessory, Harmony XV4/XV6/XVB7 Modular Tower Light, Metal L Bracket & 100mm Alu Pole
- MPN: XVZ100T
- PPN: SCH-XVZ100T
CAD
$20.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This L bracket is part of the Harmony XVB7, XV6, and XV4 ranges, featuring modular tower lights designed for easy customer assembly. With its simple and sleek design, this bracket allows for the easy assembly of tower light bases. The XVZ100T bracket comprises a steel support for the bottom cable entry and an integrated silver-colored aluminium tube. The tube is 100 mm high and 25 mm in diameter. This product comes with an IP23 rating. It weighs 332g. The Harmony range of tower lights features a sleek design incorporating energy-efficient LEDs to maximize brightness while minimizing energy consumption.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Physical Attributes
- Color
- Silver
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 0.11578256420212245, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0018437332038431973, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Pre Comm Date
- 2025-02-06
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Material
- aluminium and steel
- Product Or Component Type
- accessory
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Pep Code
- ENVPEP2501029EN
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 148 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3307298010733007
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 3.9929607663764384
Local Data StatusPublishable
Pre Comm Announcement Date2025-02-06
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2501029EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2445
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Cable Entrybottom entry
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Accessory TypeL bracket alu Ø 25mm pole 100mm
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %87
Accessory / Separate Part TypeL bracket alu Ø 25mm pole 100mm
Package Weight(Lbs)360.000 g
Warranty (In Months)18
Environment Attributes Main
- Ip Degree Of Protection
- IP54 horizontal surface, IP23 vertical surface
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 4.441316864855705
- Environmental Disclosure
- ENVPEP2501029EN
- Nema Degree Of Protection
- Type 1
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
Product CompatibilityXVB7....., XV6....., XV4.....
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2501029EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2501029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- accessory
ETIM
- ETIM 8
- EC001259
ETIM 9EC001259
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
