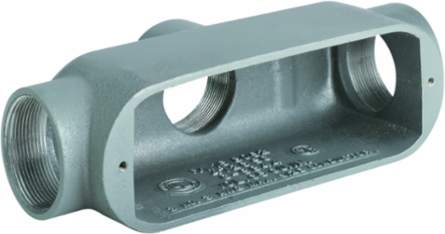

Killark OTB-1 Aluminum Conduit Body, 1/2 Inch Hub Size, Raintight, Volume 4 cu. in.
Killark OTB-1 Aluminum Conduit Body, 1/2 Inch Hub Size, Raintight, Volume 4 cu. in.
- MPN: OTB-1
- UPC: 783936530116
- PPN: HBL-OTB-1
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$52.43/ EA
Description
1/2" TB Hub, Aluminum O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 4 cu. in.
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 2.000 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 3 in
- Length
- 6 in
- Type
- Conduit Body
- Weight
- 0.38 lb.
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR11852
- Hub Pattern
- TA
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.800 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
Dimensions6 in x 2 in x 3 in
Hazardous Rating(s)Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
ColorGray
Hub Size1/2"
Special FeaturesTapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 4 cu. in.
Width2 in
ARRA CompliantContact Manufacturer
Description - InvoiceALUM CONDUIT BODY TYPE TB
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging0.38
UL File NumberE3397
SeriesO Series
BOX SIZE4.000x11.750x7.250 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783936530116
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
