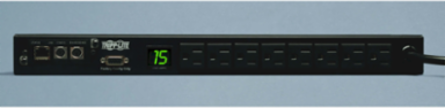

Tripp Lite PDUMNH15 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12ft Cord, 1U Rack-Mount, TAA

1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12ft Cord, 1U Rack-Mount, TAA
1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12ft Cord, 1U Rack-Mount, TAA
1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12ft Cord, 1U Rack-Mount, TAA
1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12ft Cord, 1U Rack-Mount, TAA
  • MPN: PDUMNH15
  • UPC: 037332152022
  • PPN: TRP-PDUMNH15

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$905.49/ EA

Description

1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12ft Cord, 1U Rack-Mount, TAA

Features

  • Monitored 15A 120V PDU, 1U horizontal rackmount format
  • Reports voltage, frequency & load level via ethernet interface
  • Visual current meter, Reversible housing
  • NEMA 5-15P input with attached 12ft / 3.6m line cord
  • 8 NEMA 5-15R outlets with included cord retention brackets
  • Temperature, humidity and contact closure monitoring options
  • 2-year limited warranty

Specifications

Certifications

Certifications
Tested to UL 60950 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Physical

Form Factors Supported
1U horizontal rackmount in 2 or 4 post racks
Minimum Required Rack Depth (inches)
9.2
Shipping Dimensions (hwd / in.)
2.09 x 11.00 x 20.50
Unit Dimensions (hwd / in.)
1.7 x 17.3 x 6.2
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)7.00
Unit Weight (lbs.)6.5

User Interface, Alerts & Controls

Front Panel LCD Display
Digital meter reports PDU output current in amps
Switches
n/a
Front Panel LEDsn/a

Input

PDU Input Voltage
100; 120; 127
Maximum Input Amps
15
Input Phase
Single-Phase
Recommended Electrical Service15A 120V
PDU Plug TypeNEMA 5-15P
Input Cord Length (ft.)12

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(8) 5-15R
Overload Protection
n/a
Output Capacity Details1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Output Nominal Voltage100; 120; 127

Communications

SNMP Compatibility
Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)
Operating Elevation (ft.)
0-10,000
Relative Humidity5 to 95% non-condensing
Operating Elevation (m)0-3000

Overview

UPC Code
037332152022
PDU TypeMonitored

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty

Downloads
