Tripp Lite PDU1220 2.4kW Single-Phase 120V Basic PDU, 13 NEMA 5-15/20R Outlets, NEMA 5-20P Input, 15 ft. Cord, 1U Rack-Mount

2.4kW Single-Phase 120V Basic PDU, 13 NEMA 5-15/20R Outlets, NEMA 5-20P Input, 15 ft. Cord, 1U Rack-Mount
2.4kW Single-Phase 120V Basic PDU, 13 NEMA 5-15/20R Outlets, NEMA 5-20P Input, 15 ft. Cord, 1U Rack-Mount
2.4kW Single-Phase 120V Basic PDU, 13 NEMA 5-15/20R Outlets, NEMA 5-20P Input, 15 ft. Cord, 1U Rack-Mount
  • MPN: PDU1220
  • UPC: 037332116673
  • PPN: TRP-PDU1220

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$341.02/ EA

Description

Delivers 120V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Ideal for networking, telecom, security, audio/video and sound reinforcement applications.

Features

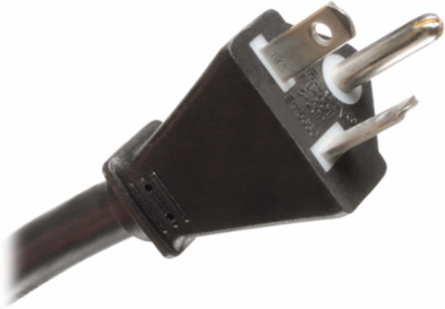

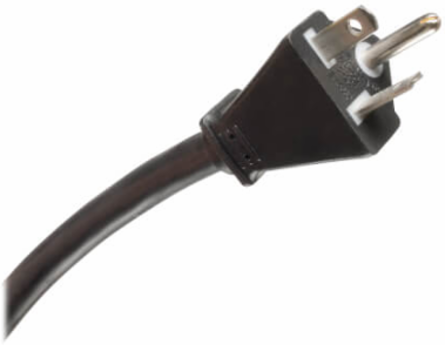

  • NEMA 5-20P input with 15 ft. (4.5 m) cord
  • 13 NEMA 5-15/20R outlets—12 rear and 1 front
  • Switchless design prevents accidental shutdown
  • Reversible all-metal housing
  • Installs in rack, on wall or under counter
  • 5-year limited warranty

Specifications

Certifications

Certifications
Tested to UL1363 5TH Edition, CAN/CSA-22.2 No. 308-14

Physical

Form Factors Supported
1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
Minimum Required Rack Depth (inches)
9.5
PDU Form Factor
Horizontal (1U)
Shipping Weight (lbs.)
5.70
Unit Weight (lbs.)
5.2
Material of ConstructionMetal
Outlets Measurement (Center to Center)30.2mm
Shipping Dimensions (hwd / in.)2.20 x 20.40 x 9.30
Unit Dimensions (hwd / in.)1.75 x 17.5 x 4.5

User Interface, Alerts & Controls

Switches
No power switch

Input

PDU Input Voltage
100; 120; 127
Maximum Input Amps
20
Input Phase
Single-Phase
Recommended Electrical Service20A 120V
PDU Plug TypeNEMA 5-20P
Input Cord Length (ft.)15

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(13) 5-15/20R
Overload Protection
20A circuit breaker
Output Capacity Details2.5kW (127V), 2.4kW (120V), 2.0kW (100V) / 20A total capacity; 16A max per 5-15/20R outlet
Output Nominal Voltage100; 120; 127

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)
Operating Elevation (ft.)
0-10,000
Relative Humidity5 to 95% non-condensing
Operating Elevation (m)0-3000

Overview

UPC Code
037332116673
PDU TypeBasic

Special Features

TVSS Grounding
Back panel grounding lug

Warranty

Product Warranty Period (Worldwide)
5-year limited warranty
