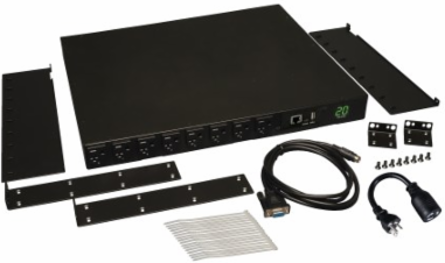

Tripp Lite PDUMH20NET 1.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15/20R), L5-20P/5-20P input, 12ft Cord, 1U Rack-Mount, TAA
Tripp Lite PDUMH20NET 1.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15/20R), L5-20P/5-20P input, 12ft Cord, 1U Rack-Mount, TAA
- MPN: PDUMH20NET
- UPC: 037332157683
- PPN: TRP-PDUMH20NET
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1464.82/ EA
Description
1.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15/20R), L5-20P/5-20P input, 12ft Cord, 1U Rack-Mount, TAA
Features
- 1.9kW 120V Switched 20A 1U rackmount PDU, Reversible housing
- LX Platform network interface enables remote control and monitoring
- Reports voltage, frequency and load level; Front-panel digital current meter
- 16 Switched NEMA 5-15/20R outlets and 12ft./3.6m NEMA L5-20P / 5-20P input cord
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported
- 1U rackmount
- Minimum Required Rack Depth (inches)
- 20.5
- Shipping Dimensions (hwd / in.)
- 5.40 x 20.60 x 23.30
- Unit Dimensions (hwd / in.)
- 1.75 x 17.5 x 15.5
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)16.70
Unit Weight (lbs.)12.50
User Interface, Alerts & Controls
- Front Panel LCD Display
- Digital display reports total PDU output current in amps
- Switches
- Recessed reset button for rebooting SNMP management card without affecting AC output to connected equipment
Front Panel LEDs16 LEDs display power on-off status for each output receptacle. Pre-installed WEBCARDLX provides Ethernet Link and Status LED's for network activity along with a system status LED for monitoring system operation.
Input
- PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps
- 20.0
- PDU Plug Type
- NEMA 5-20P; NEMA L5-20P
- Input Cord Length (ft.)
- 12
Recommended Electrical Service20A 120V
Maximum Input Amps DetailsAgency de-rated to 16A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (16) 5-15/20R
- Overload Protection
- n/a
Output Capacity Details1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
Output Nominal Voltage100; 120
Customized Load Management Receptacles16 individually switched output receptacles
Communications
- SNMP Compatibility
- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
- Operating Elevation (ft.)
- 0-10,000
Relative Humidity5 to 95% (non-condensing)
Operating Elevation (m)0-3000
Overview
- UPC Code
- 037332157683
PDU TypeSwitched
Special Features
- TVSS Grounding
- Grounding lug
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
