Killark GRSS-3M Iron Outlet Body 1 Inch, 7 Internal Hubs, Gray Finish, Powder Epoxy Paint
- MPN: GRSS-3M
- UPC: 783936230108
- PPN: HBL-GRSS-3M
- UNSPSC: 39121308
CAD
$555.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

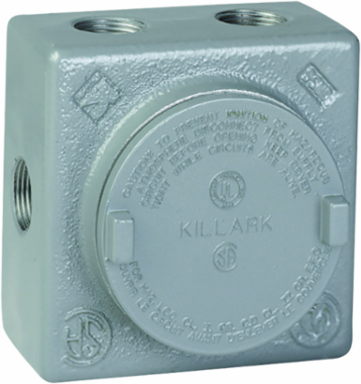

1" Iron GRSS Outlet Body, 7 Internal Hub Config
Features
- Internal hubs
- Blank cover included (Cat. No. GRRBC)
- Compact design and multiple hub configurations
- Furnished with internal ground screw
- Cast-in brackets on cover for use with breaker-bar tools
- Finished with 7 internal hubs
- Internal hubs. Blank cover included (GRRBC). Compact design and multiple hub configurations. Furnished with internal ground screw. Cast-in brackets on cover for use with breaker-bar tools.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 1"
- Application
- Furnished with seven internal hubs: two hubs are on the top and bottom, one each on the two sides, and one hub in the back. Four close-up plugs supplied. Series GUM unions can be used.
- Size
- 7.5 in x 5.875 in x 4.125 in
- Type
- Outlet Body
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- GR Outlet Bodies Series
- BOX SIZE
- 4.125x7.500x5.875 (in)
- Carton - Total Units
- 1 EA
- NAICS Code
- 3359326103
Dimensions7.5 in x 5.875 in x 4.125 in
Height4.125 in
Length7.5 in
ColorGray
Special FeaturesInternal hubs. Blank cover included (GRRBC). Compact design and multiple hub configurations. Furnished with internal ground screw. Cast-in brackets on cover for use with breaker-bar tools.
Width5.875 in
ARRA CompliantContact Manufacturer
Description - InvoiceOUTLET BODY, SQUARE 1" FE
Harmonization Code7307193085
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging8.37
MaterialIron
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936230108
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
