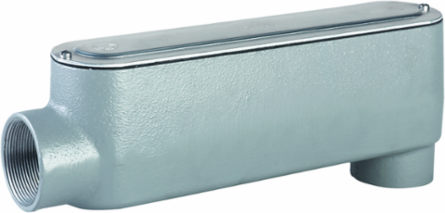

Killark NECLB-3 1 Inch LB Hub Conduit Body, Aluminum, 9x2x4 Inch, 17 cu. in. Volume
- MPN: NECLB-3
- UPC: 783936421001
- PPN: HBL-NECLB-3
- UNSPSC: 39131708
CAD
$184.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1" LB Hub, Aluminum NEC Conduit Body
Features
- Large cover opening (length of opening exceeds six times the trade diameter of the hub size) for easy access to conductors. Cover and gasket included. Volume is 17 cu. in.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Color | Gray |
| Height | 4 in |
| Length | 9 in |
| Type | 40% Fill Conduit Body With Cover & Gasket |
| Engineering Drawing 1 Display Text | NECLB-3 Engineering Drawing |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 1" 'O' SERIES (CB) |
| Harmonization Code | 7609000000 |
| Lead Time | 42 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D230 |
| Hub Pattern | LB |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.700 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 |
| Master Pack Description | Each |
| Dimensions | 9 in x 2 in x 4 in |
|---|---|
| Application | Specially designed to meet National Electrical Code Article 370-28(a) (2) for angle pulls where the distance between the raceway entry and the opposite wall of the fitting must be at least six times the trade diameter of the raceway. A pull box with easy |
| Finish | Powder Epoxy Paint |
| Hub Size | 1" |
| Special Features | Large cover opening (length of opening exceeds six times the trade diameter of the hub size) for easy access to conductors. Cover and gasket included. Volume is 17 cu. in. |
| Width | 2 in |
| Finish Type | Powder Epoxy Paint |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Gross Weight with Packaging | 0.94 |
| UL File Number | E3397 |
| Series | Moguls Series |
| BOX SIZE | 5.000x11.250x9.250 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936421001 |
| Item Package Type | K-PAK (cover & gasket included) |
| NAICS Code | 3359323110 |
