Description

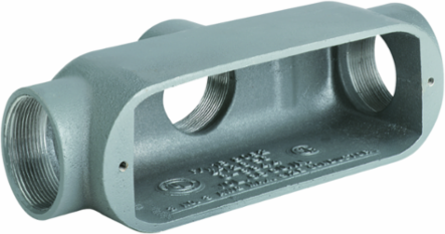

1" TB Hub, Aluminum O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 12 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Hub Size
- 1"
- Special Features
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 12 cu. in.
- Width
- 2 in
- Engineering Drawing 1 Display Text
- OTB-3 Engineering Drawing
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- TB
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.510 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- NAICS Code
- 3359323110
Dimensions8 in x 2 in x 3 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height3 in
Length8 in
TypeConduit Body
Weight0.62 lb.
ARRA CompliantContact Manufacturer
Description - Invoice1" TB TYPE ALUM CONDUIT BODY
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging0.62
UL File NumberE3397
SeriesO Series
BOX SIZE4.125x12.000x7.250 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936530130
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
