Greenlee DM-810A Digital Multimeter 10,000 Count, 1000V, 10A, True RMS, Backlit LCD
- MPN: DM-810A
- UPC: 783310087434
- PPN: GRN-DM-810A
- UNSPSC: 41113630
CAD
$464.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Digital Multimeter 10,000 Count, 1000V, 10A, True RMS, Backlit LCD
Features
- True RMS for no-compromise accuracy
- Measures voltage, current,resistance, capacitance and frequency
- Tests continuity and diodes
- Backlit LCD with dual 10,000 count displays
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual range selection
- Relative offset mode to see changes in measurements
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Battery
- (1) 9 V
- Conductance
- 99.99 nS
- Frequency Measurement
- 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave
- Measurement Category
- CAT IV, 1000 V
- Resistance Measurement
- 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
- Temperature Rating
- K Type, -58 To 1832°F (-50 To 1000°C)
- Voltage Measurement
- 60, 600 mV, 9.999, 99.99, 999.9 V
Amperage Measurement600, 6000μA; 60, 600mA; 6, 10A
Capacitance60, 600nF; 6, 60, 600μF; 6, 25 mF
DisplayBacklit LCD With Dual 10,000 Count

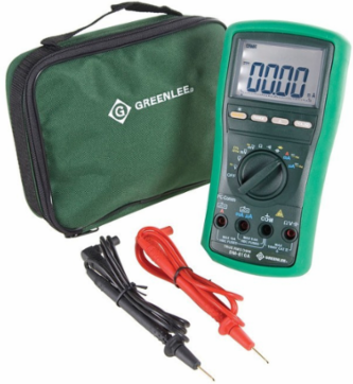

Includes(1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400°F/204°C Max), Test Leads, Protective Boot, Carrying Case
Replacement PartTC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A)
StandardCAT IV, C/UL US Listed, TRUE RMS, CE Listed
TypeDigital
