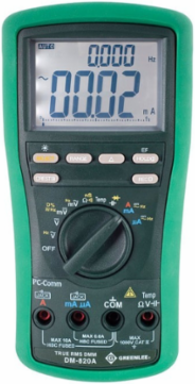

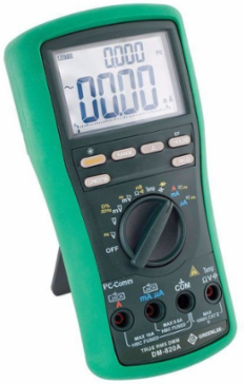

Greenlee DM-820A 10,000-Count Digital Multimeter, 1000V, 10A, True RMS, Backlit LCD
- MPN: DM-820A
- UPC: 783310087441
- PPN: GRN-DM-820A
- UNSPSC: 41113630
CAD
$511.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
10,000-Count Digital Multimeter, 1000V, 10A, True RMS, Backlit LCD
Features
- True RMS for no-compromise accuracy
- Measures voltage, current,resistance, Capacitance And Frequency
- Tests Continuity And Diodes
- Backlit LCD With Dual 10,000 Count Displays
- BeepJack Warns When Test Leads Are Incorrectly Inserted In Current Measurement Terminals
- Automatic And Manual RangeSelection
- Relative Offset Mode To See Changes In Measurements
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Battery
- (1) 9 V
- Conductance
- 99.99 nS
- Frequency Measurement
- 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave
- Measurement Category
- CAT IV, 1000 V
- Resistance Measurement
- 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
- Temperature Rating
- K Type, -58 To 1832°F (-50 To 1000°C)
- Voltage Measurement
- 60, 600 mV; 9.999, 99.99, 999.9 V
Amperage Measurement600, 6000μA; 60, 600mA; 6, 10A
Capacitance60, 600nF; 6, 60, 600μF; 6, 25 mF
DisplayBacklit LCD With Dual 10,000 Count
Includes(1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400 DEG F/204 DEG C Max), Test Leads, Protective Boot, Carrying Case
Replacement PartTC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A)
StandardCAT IV, C/UL US Listed, TRUE RMS, CE Listed
TypeDigital
