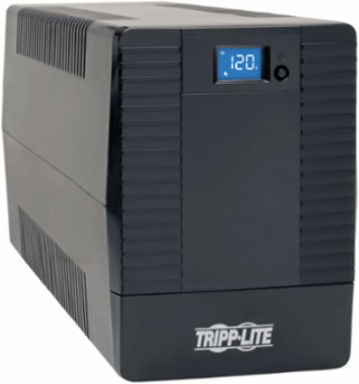

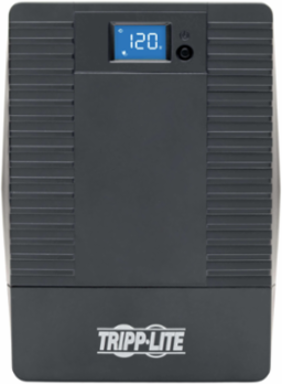

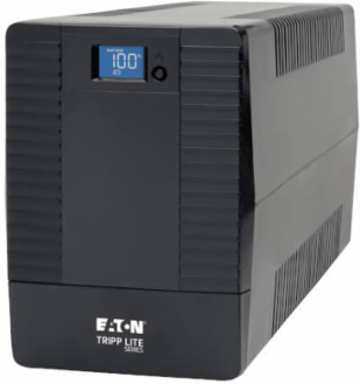

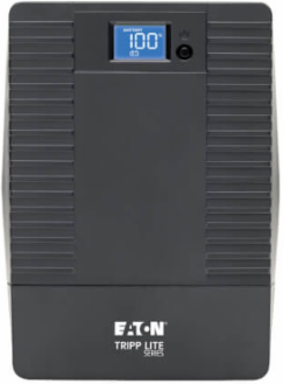

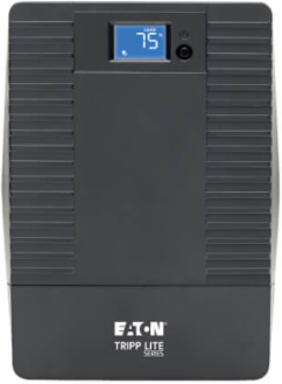

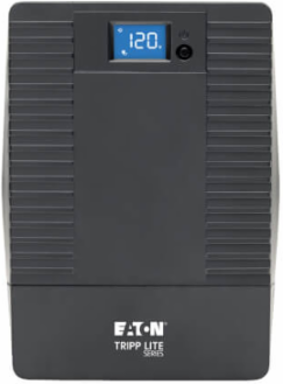

Tripp Lite OMNIVS1000LCD 1000VA Line-Interactive UPS, 560W, 8 NEMA 5-15R Outlets, 120V
- MPN: OMNIVS1000LCD
- UPC: 037332214065
- PPN: TRP-OMNIVS1000LCD
CAD
$321.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1000VA Line-Interactive UPS, 560W, 8 NEMA 5-15R Outlets, 120V
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Maintains continuous 120V nominal output during brownouts and overvoltages
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- High >95% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 3-year limited warranty
- $200,000 Ultimate Lifetime Insurance
- 1000VA/560W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
- Allows Time to Back Up Critical Files During a Blackout

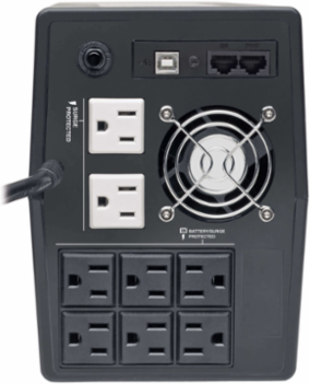

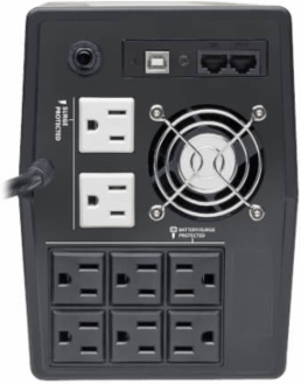

- 8 NEMA 5-15R Outlets Protect Your Connected Components
- Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
- Automatically Turns Back On After Power Is Restored
- Combats Line Noise That Can Harm Equipment
- Designed for High Efficiency to Help You Save Money and Protect the Environment
- Home-Friendly Silent Alarm and LCD Touchscreen Keep You Informed 24/7
- HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
- Compact Housing Compatible with Easy Desktop Installation
Documentation & Downloads
Specifications
Additional
- Output Volt Amp Capacity
- 1000 VA
- Output Voltage
- 120 V nominal
- Output Voltage Regulation (Battery Mode)
- 120 V (±10%)
- Input Rated Current
- 12 A
- Input Circuit Breaker
- 15 A
- Full Load Runtime
- 2 min (560 W)
- DC System Voltage
- 12 V
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains operation with input range 89 to 145 V
- Undervoltage Correction
- Input 89-108 V boosted 18%
- Surge Suppression Joule Rating
- 316 J
- EMI/RFI Noise Suppression
- Yes
- Transfer Time
- 6 ms typical (max 10 ms)
- High Voltage Transfer to Battery
- 145 V
- High Availability Features
- Battery Independent Restart
- Battery Replacement
- Replaceable internal batteries
- Installation Form Factor
- Tower
- UPS Weight
- 19.2 lbs (8.71 kg)
- Storage Temperature Range
- +5 to +113 °F (-15 to +45 °C)
- AC Mode BTU/hr (Full Load)
- 25.3
- Green Energy Features
- >95% efficiency
- Warranty Period
- 3 years (US, Canada, Mexico), 2 years international
Output Watt Capacity560 W
Output Voltage Regulation (Line Mode)120 V (+6%/-12%)
Frequency Compatibility50/60 Hz
Nominal Input Voltage120 V AC
Input PhaseSingle-Phase
Half Load Runtime12 min (280 W)
Battery Recharge Rate8 hours (10% to 90%)
Overvoltage CorrectionInput 128-149 V reduced 15%
Audible AlarmSilent in backup; sounds on low-battery, fault, overload, replace battery
UPS Dataline Suppression1 line TEL/DSL or Ethernet
AC Mode Efficiency Rating>95%
Low Voltage Transfer to Battery89 V
Cold StartSupported

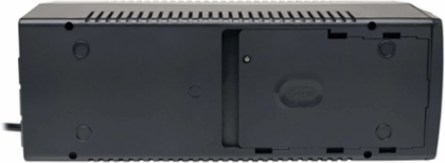

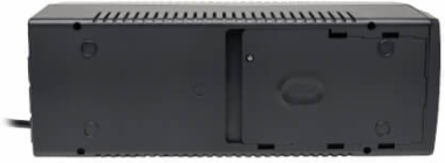

Battery AccessBattery access door
Front Panel DisplayTouchscreen LCD with input/output voltage, load %, battery charge %
UPS Dimensions (H x W x D)7.5 x 5.5 x 15 in
Operating Temperature Range+32 to +104 °F (0 to +40 °C)
Relative Humidity0 to 90%, non-condensing
Communications InterfaceUSB (HID enabled)
CertificationsUL1778, CSA, FCC Part 15 Class A, NOM, RETIE
Connected Equipment Insurance$200,000 Ultimate Lifetime Insurance
