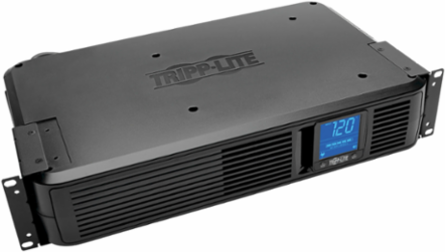

Tripp Lite SMART1200LCD SmartPro LCD 120V 1200VA 700W Line-Interactive UPS, AVR, 2U Rack/Tower, LCD, USB, DB9 Serial, 8 Outlets

SmartPro LCD 120V 1200VA 700W Line-Interactive UPS, AVR, 2U Rack/Tower, LCD, USB, DB9 Serial, 8 Outlets - https://media.province-electric.com/tripplite/2020q1/2ca9a8b3a6f0d565d687edfa5cd005a8e74ef6fa-medium.png

SmartPro LCD 120V 1200VA 700W Line-Interactive UPS, AVR, 2U Rack/Tower, LCD, USB, DB9 Serial, 8 Outlets

Tripp Lite SMART1200LCD SmartPro LCD 120V 1200VA 700W Line-Interactive UPS, AVR, 2U Rack/Tower, LCD, USB, DB9 Serial, 8 Outlets

MPN: SMART1200LCD
UPC: 037332126122
PPN: TRP-SMART1200LCD

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$861.25/ EA

Qty:

Loading add to cart quantity...

Description

Provides reliable 1200VA/700W power protection for your desktop computer, network workstation, audio/video components or media center. Protects against surges, line noise, blackouts and brownouts.

Features

Supports a half-load (350W) up to 14.3 min. during power outage
Supports a full load (700W) up to 4.0 min. during power outage
High 97% efficiency in line power mode
Features 8 protected NEMA 5-15R outlets
Offers automatic voltage regulation (AVR)
LCD screen reports real-time UPS and power status
3-year limited warranty
$250,000 Ultimate Lifetime Insurance

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 870

UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

UPS Dataline Suppression Details168 joules; Compatible with POE applications

Battery

Full Load Runtime (min.): 4.0 min. (700w)

DC System Voltage (VDC): 24

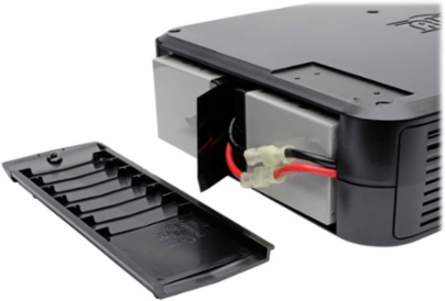

Internal UPS Replacement Battery Cartridge: IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMART1200LCD UPS has no battery replacement door, please contact a local electronics repair technician to source and install a matching replacement battery; If your SMART1200LCD UPS is equipped with a battery access door, please order Tripp Lite RBC1500 (quantity 1) replacement battery

Half Load Runtime (min.)14.3 min. (350w)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%

Expandable RuntimeNo

Certifications

UPS Certifications: Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

UPS Certification DetailsUL1778: 2014 R8.15 5TH EDITION; CSA-C22.2 NO. 107.3-14 3RD EDITION; FCC Part 68 Certification Number 5WSWP00B001; Industry Canada Certification Number 3449-001, REN: 0.1

Physical

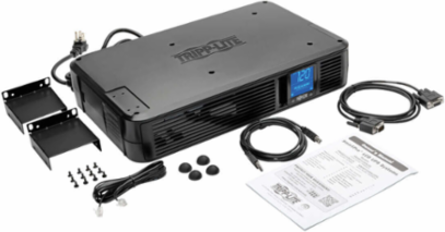

Included Mounting Accessory Description: Included mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement

Minimum Required Rack Depth (inches): 13.5

Primary UPS Depth (mm): 267

Primary UPS Width (mm): 440

Shipping Dimensions (hwd / in.): 7.30 x 15.10 x 21.30

UPS Housing Material: ABS

UPS Power Module Weight (kg): 12.05

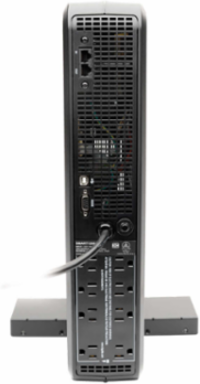

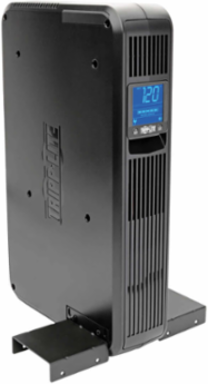

Installation Form Factors Supported with Included Accessories2 post 19 inch rackmount; 4 post 19 inch rackmount; Tower

Primary Form FactorRackmount

Primary UPS Height (mm)89

Rack Height2U

Shipping Weight (lbs.)28.50

UPS Power Module Dimensions (hwd, in.)3.49 x 17.33 x 10.5

UPS Power Module Weight (lbs.)26.56

User Interface, Alerts & Controls

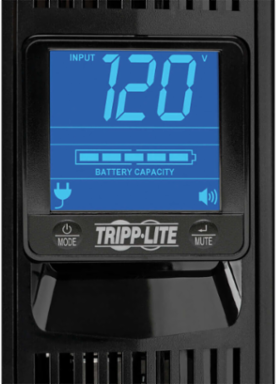

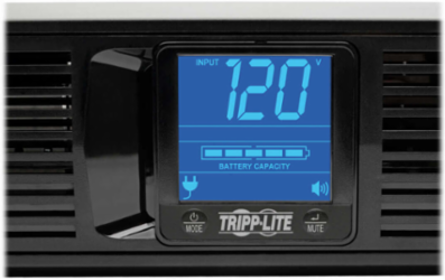

Front Panel LCD Display: Backlighted LCD screen offers detailed UPS status information, configuration options and Error message reporting; STATUS INFORMATION includes Input Voltage, Output Voltage, Estimated Runtime (minutes), Output Load Percentage, Output Load Wattage, Battery Charge Percentage, Graphical 5-Bar Battery Charge Level and UPS Operating Mode Display / CONFIGURATION OPTIONS include Power Sensitivity, LCD Status Information Scrolling, Alarm Disable, LCD Brightness and Self Test / REPORTED ERROR MESSAGES include Replace-Battery and Overload conditions; LCD Screen rotates for vertical or horizontal UPS placement

Alarm Cancel Operation: Press the MUTE/ENTER button during a power failure to silence the alarm; Once silenced, alarm will re-sound to indicate low-battery status

LED Indicators: Front panel LCD display

SwitchesON/OFF/MODE button provides UPS on/off power control (long-press) and advances the LCD screen display (short tap); MUTE/ENTER button provides temporary alarm cancel, plus selection and confirmation of on-screen configuration options

Audible AlarmAudible alarm indicates power-failure and low-battery status; Alarm can be disabled entirely via front panel LCD interface (see manual)

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147

Undervoltage Correction: Input voltages between 92 and 107 are boosted by 14%

Overvoltage CorrectionInput voltages between 128 and 147 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 75 and 92 are boosted by 30%

Input

Rated input current (Maximum Load): 7A

UPS Input Connection Type: 5-15P; Right-Angled

UPS Input Cord Length (ft.): 6

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported120V AC

Input Circuit Breakers10A

Recommended Electrical Service15A 120V

Output

Output Volt Amp Capacity (VA): 1200

Output Watt Capacity (Watts): 700

Frequency Compatibility: 60 Hz

Output Voltage Regulation (Battery Mode): +/- 5%

Output AC Waveform (Battery Mode): PWM sine wave

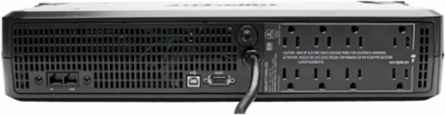

Output Receptacles: (8) 5-15R

Output kVA Capacity (kVA)1.2

Nominal Voltage Details115v nominal output in battery mode

Output Voltage Regulation (Line Mode)-18%, +8%

Output AC Waveform (AC Mode)Sine wave

Nominal Output Voltage(s) Supported110V; 115V; 120V

Individually Controllable Load BanksNo

Communications

Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions; DB9 provides contact-closure notification of AC Present (pins 1,9 connected) and AC Fail (pins 1,8 connected)

Communications Cable: USB and DB9 Serial cabling included

Communications Interface: Contact closure; DB9 Serial; USB (HID enabled)

PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: Up to 95%, non-condensing

AC Mode Efficiency Rating (100% Load): 97%

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)80

Overview

UPC Code: 037332126122

UPS TypeLine-Interactive

Special Features

Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported

Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS

Warranty

Product Warranty Period (U.S. & Canada): 3-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 4 milliseconds (AC to battery mode); 1 millisecond (Battery to AC mode)

High Voltage Transfer to Battery Power (Setpoint): 147

Low Voltage Transfer to Battery Power (Setpoint)75
