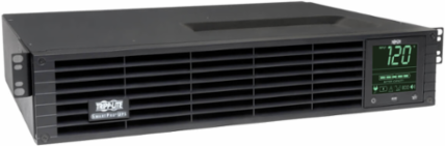

Tripp Lite SMART1000RMXL2U SmartPro 120V 1kVA 900W Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, 8 Outlets
Tripp Lite SMART1000RMXL2U SmartPro 120V 1kVA 900W Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, 8 Outlets
- MPN: SMART1000RMXL2U
- UPC: 037332160546
- PPN: TRP-SMART1000RMXL2U
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1920.52/ EA
Description
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Ideal solution for data centers, VoIP systems and network closets.
Features
- Corrects under- and overvoltages from 83V to 147V
- 8 NEMA 5-15R outlets—4 switchable via network interface
- Network power management and control capability
- Expandable runtime with optional external battery packs
- 18 min. runtime at half load; 6.3 min. at full load
- To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 570
- AC Suppression Response Time
- Instantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 6.3 min. (900w)
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- DC System Voltage (VDC)
- 36
- Internal UPS Replacement Battery Cartridge
- RBC93-2U
- Battery Replacement Description
- Hot-swappable, replaceable batteries
Half Load Runtime (min.)18 min. (450w)
External Battery Pack CompatibilityBP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27 -2US (multi-pack compatible)
Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10 to 90% (typical, full load discharge)
Battery AccessFront panel battery access door
Expandable RuntimeYes
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Minimum Required Rack Depth with External Battery Pack (cm)
- 51
- Minimum Required Rack Depth without External Battery Pack (cm)
- 42
- Optional Mounting Accessory Notes
- Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
- Primary UPS Depth (mm)
- 342
- Primary UPS Width (mm)
- 439
- Shipping Dimensions (hwd / in.)
- 8.60 x 23.20 x 19.20
- UPS Housing Material
- Steel
- UPS Power Module Weight (kg)
- 20.64

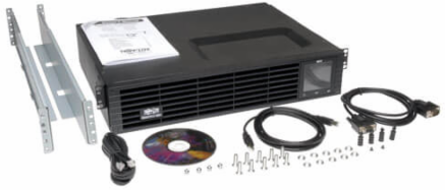

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Minimum Required Rack Depth with External Battery Pack (in.)19.95
Minimum Required Rack Depth without External Battery Pack (in.)16.45
Primary Form FactorRackmount
Primary UPS Height (mm)88
Rack Height2U
Shipping Weight (lbs.)57.40
UPS Power Module Dimensions (hwd, in.)3.45 x 17.3 x 13.45
UPS Power Module Weight (lbs.)45.5
User Interface, Alerts & Controls

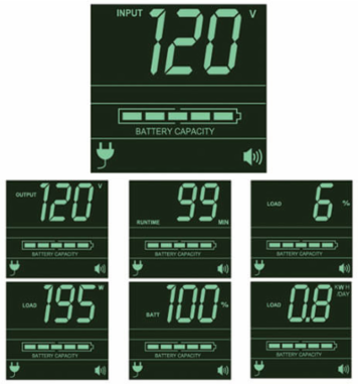

- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
- Undervoltage Correction
- Input voltages between 104 and 83 are boosted by 14%
Overvoltage CorrectionInput voltages between 127 and 147 are reduced by 12%
Input
- Rated input current (Maximum Load)
- 9.2A

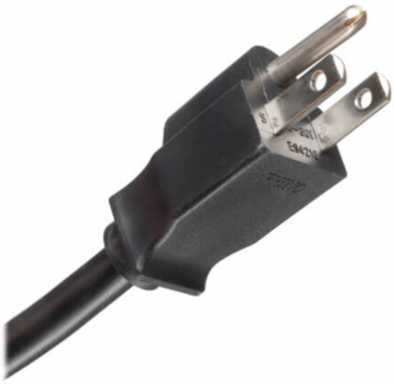

- UPS Input Connection Type
- 5-15P
- Recommended Electrical Service
- 15A 120V
Nominal Input Voltage(s) Supported120V AC
UPS Input Cord Length (ft.)10
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 1000
- Output Watt Capacity (Watts)
- 900
- Nominal Voltage Details
- 120v nominal output in battery mode
- Output Voltage Regulation (Line Mode)
- 120V (+6%, -14%)
- Load Management Receptacles
- Two switchable two outlet 5-15R load banks
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- Yes
Output kVA Capacity (kVA)1
Power Factor.9
Frequency Compatibility60 Hz
Output Voltage Regulation (Battery Mode)+/-5%
Output AC Waveform (AC Mode)Pure Sine wave
Output Capacity DetailsOutput is reduced to 800 watts maximum when used with external battery packs
Output Receptacles(8) 5-15R
Communications
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Communications Interface
- USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions
Communications CableUSB, DB9 and EPO cabling included
Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 542
- Audible Noise
- 45 dBA maximum, front side 1m
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)179
AC Mode Efficiency Rating (100% Load)97%
Overview
- UPC Code
- 037332160546
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS; Individually controllable load banks; Schedulable daily hours of economy mode operation
High Availability UPS FeaturesHot swappable batteries
Warranty
- Product Warranty Period (Worldwide)
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 4 milliseconds (AC to battery mode), 3 millisecond (Battery to AC mode)
- High Voltage Transfer to Battery Power (Setpoint)
- 147
Low Voltage Transfer to Battery Power (Setpoint)83
