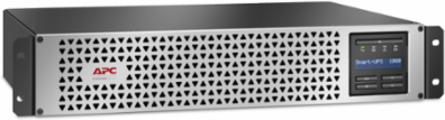

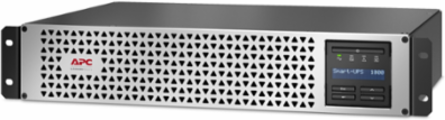

APC SMTL1000RM2UCNC Smart-UPS 1000VA Line Interactive UPS, 2U Rack/Tower, Lithium-ion, 120V, 6x NEMA 5-15R Outlets
- MPN: SMTL1000RM2UCNC
- UPC: 731304435464
- PPN: APC-SMTL1000RM2UCNC
CAD
$4052.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS 1000VA Line Interactive UPS, 2U Rack/Tower, Lithium-ion, 120V, 6x NEMA 5-15R Outlets
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 1000 VA |
|---|---|
| Input Voltage | 120 V |
| Input Frequency | 50/60 Hz 3 Hz |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Waveform Type | Sine wave |
| Crest Factor | 3:1 |
| Height | 3.39 in (86 mm) |
| Depth | 12.52 in (318 mm) |
| Rack Height | 2U |
| Cable Length | 8 ft (2.44 m) |
| Battery Type | Li-Ion (Lithium Ion) |
| Battery Design Life | 8-10 years |
| Acoustic Level | 41 dBA |
| Operating Altitude | 0-10000 ft |
| Operating Temperature | 32-104 F (0-40 C) |
| Relative Humidity | 0-95% non-condensing |
| RoHS Compliance | Compliant with Exemptions |
| REACH Compliance | Contains Substances of Very High Concern above threshold |
| Color | Black with silver front bezel |
| Power Rating | 800 W |
|---|---|
| Output Voltage | 120 V |
| Output Frequency | 50/60 Hz 3 Hz |
| Topology | Line Interactive |
| Harmonic Distortion | Less than 5% |
| Surge Energy Rating | 680 J |
| Width | 17.24 in (438 mm) |
| Weight | 35.9 lb (16.3 kg) |
| Number of Outlets | 6 NEMA 5-15R |
| Input Connection Type | NEMA 5-15P |
| Battery Recharge Time | 3 h |
| Efficiency Voltage Range | 75-154 V adjustable |
| Heat Dissipation | 135 Btu/h |
| Storage Altitude | 0-25000 ft |
| Storage Temperature | 5-113 F (-15-45 C) |
| IP Degree of Protection | IP20 |
| Mercury Free | Yes |
| NOM Approval | Yes |
| Country of Origin | Philippines |
