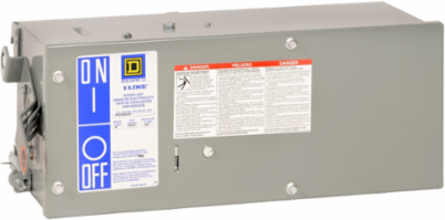

Square D PHG36070GN Plug-in unit, I-Line Busway, H-frame, 70A, 3 phase, 4 wire, 600VAC, 18kA, ground, neutral
Square D PHG36070GN Plug-in unit, I-Line Busway, H-frame, 70A, 3 phase, 4 wire, 600VAC, 18kA, ground, neutral
- MPN: PHG36070GN
- PPN: SCH-PHG36070GN
- UNSPSC: 39131702
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This circuit breaker plug-in unit is 70A, 600VAC, 3 phase, 4 wire with H-frame breaker. Its circuit breaker has a 18kA interrupting trip rating. This unit includes a ground and neutral. I-Line Busway plug in units are UL listed and CSA certified.
Specifications
Complementary Attributes
- UE Rated Operational Voltage
- 600 V AC 50/60 Hz, 277/480 V AC 50/60 Hz
Important Information Attributes
- Disconnector Device Type
- thermal magnetic circuit breaker 70 A 18 kA 600 V, thermal magnetic circuit breaker 70 A 35 kA 480 V, thermal magnetic circuit breaker 70 A 65 kA 240 V
- Local Publishable Date
- 2025-11-19
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- L - LOB initialized
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 14.52 kg
- Product Or Component Type
- plug-in unit
- Returnability
- No
- Wiring Configuration
- 4-wire
- Product Kit Identifier
- N
Local Data StatusPublishable
Device TypeBusway & cable - LV busway
TraceabilityNo
Average Life Duration20 year(s)
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Busbar Descriptionground
Module TypeH-Frame
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductI-Line
Sustainable PackagingNo
Pep CodeENVPEP1410002EN
Product ManagerRYAN JONES
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption, Compliant with Exemptions
- Take Back
- No
- China ROHS Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1410002EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1410002EN
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plug-in unit
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
