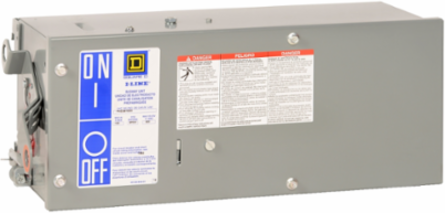

Square D PHD36100GN Plug-in unit, I-Line Busway, H-frame, 100A, 3 phase, 4 wire, 600VAC, 14kA, ground, neutral
Square D PHD36100GN Plug-in unit, I-Line Busway, H-frame, 100A, 3 phase, 4 wire, 600VAC, 14kA, ground, neutral
- MPN: PHD36100GN
- UPC: 785901565710
- PPN: SCH-PHD36100GN
- UNSPSC: 39121701
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4856.22/ EA
Description
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This circuit breaker plug-in unit is 100A, 600VAC, 3 phase, 4 wire with H-frame breaker. Its circuit breaker has a 14kA interrupting trip rating. This unit includes a ground and neutral. I-Line Busway plug in units are UL listed and CSA certified.
Features
- Item is no longer a stock item but is available for purchase through a configuration tool with your local distributor.
- Fusible or with circuit breaker
- Fusible plug in units available through 1200A
- Electronic trips and communication packages available for circuit breaker plug in units
- Reduced installation time with mounting hook alignment to opening
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Disconnector Device Type
- thermal magnetic circuit breaker 100 A 14 kA 600 V, thermal magnetic circuit breaker 100 A 18 kA 480 V, thermal magnetic circuit breaker 100 A 25 kA 240 V
- Ue Rated Operational Voltage5
- 600 V AC 50/60 Hz, 277/480 V AC 50/60 Hz
- Local Publishable Date
- 2025-11-19
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Busbar Description
- ground
- Fuse Type
- H
- Package Weight Lbs
- 14.515 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- I-Line
- Sustainable Packaging
- No
- Medium Desc
- Plug-in unit, I-Line Busway, H-frame, 100A, 3 phase, 4 wire, 600VAC, 14kA, ground, neutral
- Product Kit Identifier
- N
- Level Or Class
- class 5600
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Ue Rated Operational Voltage2600 V AC 50/60 Hz, 277/480 V AC 50/60 Hz
Local Data StatusPublishable
Device TypeBusway & cable - LV busway
TraceabilityNo
Average Life Duration20 year(s)
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Module TypeH-Frame
Phase3 phase
Product Or Component Typeplug-in unit
ReturnabilityNo
Wiring Configuration4-wire
Stocking FlagY
Pep CodeENVPEP1410002EN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1410002EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1410002EN
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
