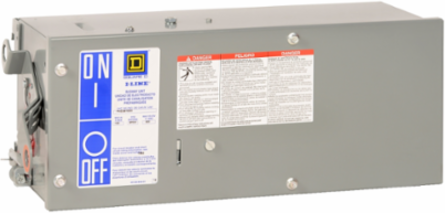

Square D PHJ36020GN Plug-in unit, I-Line Busway, H-frame, 20A, 3 phase, 4 wire, 600VAC, 25kA, ground, neutral
- MPN: PHJ36020GN
- PPN: SCH-PHJ36020GN
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This circuit breaker plug-in unit is 20A, 600VAC, 3 phase, 4 wire with H-frame breaker. Its circuit breaker has a 25kA interrupting trip rating. This unit includes a ground and neutral. I-Line Busway plug in units are UL listed and CSA certified.
Documentation & Downloads
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA, UL
- Local Data Status
- Publishable
- Return Indicator
- N
- Device Type
- Busway & cable - LV busway
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Disconnector Device Type
- thermal magnetic circuit breaker 20 A 25 kA 600 Vthermal magnetic circuit breaker 20 A 65 kA 480 Vthermal magnetic circuit breaker 20 A 100 kA 240 V
- Fuse Type
- H
- Module Type
- H-Frame
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- I-Line
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1410002EN
- Package Weight(Lbs)
- 14.515 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
[Ue] Rated Operational Voltage600 V AC 50/60 Hz, 277/480 V AC 50/60 Hz
Local Publishable Date2025-11-19
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Busbar Descriptionground
Energy Efficiency OptimizedFalse
Level Or Classclass 5600
Phase3 phase
Product Or Component Typeplug-in unit
ReturnabilityNo
Wiring Configuration4-wire
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1410002EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1410002EN
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typeplug-in unit
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
