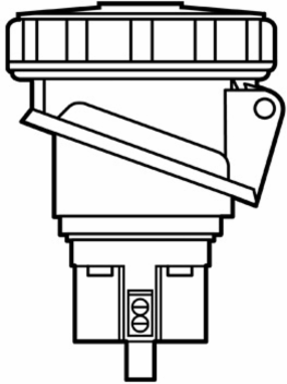

Pass & Seymour PS3100R7W Pin & Sleeve Watertight 100A 480V Receptacle
Pass & Seymour PS3100R7W Pin & Sleeve Watertight 100A 480V Receptacle
- MPN: PS3100R7W
- UPC: 785007031072
- PPN: P-S-PS3100R7W
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$669.00/ EA
Description
Double-Pole, Tamper-Resistant wire, Pin and Sleeve Receptacle. 100A, 480V.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Specifications
Specifications
- Height
- 6.6 in
- Length
- 5.6 in
- Product Line
- Pass & Seymour
- Country of Origin
- United States
- Standard
- UL Listed
- Number of Poles
- Double Pole
- Special Features
- Impact, chemical resistant, non conductive retaining screw, brass male/female contacts
ColorGray
Width5.2 in
Voltage480.0 V
Amperage100.0 A
Number of Wires3.0
Application SectorIndustrial
