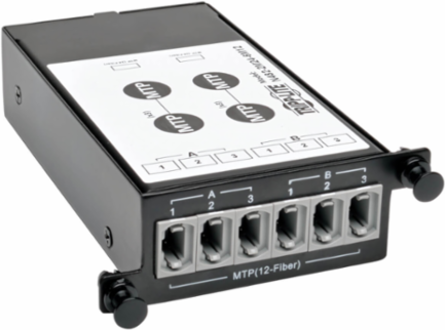

Tripp Lite N482-2M24-6M12 100/120Gb to 40Gb Breakout Cassette, 24-Fiber to 12-Fiber, Polarity B
- MPN: N482-2M24-6M12
- UPC: 037332184559
- PPN: TRP-N482-2M24-6M12
CAD
$2292.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
100/120Gb to 40Gb Breakout Cassette, 24-Fiber to 12-Fiber, Polarity B
Features

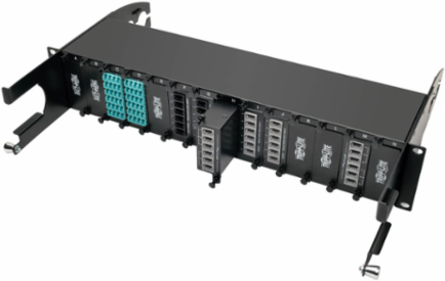

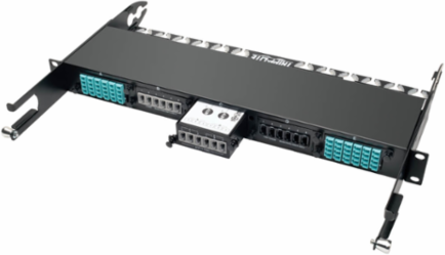

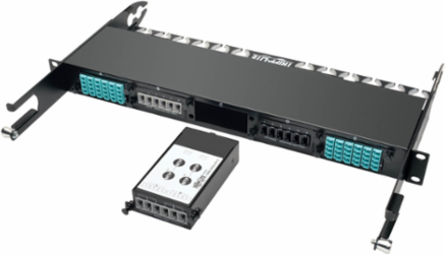

- High Density Fiber Cassette for use with Tripp Lite N482-01U and N482-02U High Density Fiber Enclosure Panels

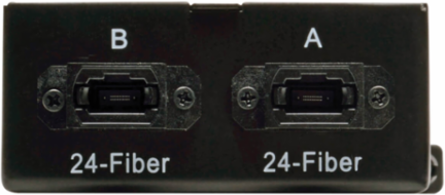

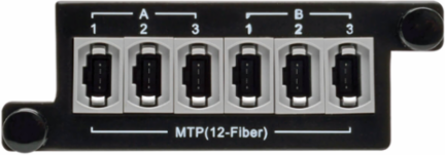

- 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO ( Male w/Pins ) connections to (x6) 12-Fiber OM4 MTP/MPO connections ( Male w/Pins )
- Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
- Guaranteed compatibility when used with recommended Tripp Lite cabling
- Designed specifically for use with Tripp Lite cables, such as the N844- and N846-Series cables
- Factory terminated connectors reduce the time and labor required of field connector terminations
- Max insertion loss of 0.35dB
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Data Rate | 100/120Gb to 40Gb |
|---|---|
| Side A Connector Type | 24-Strand MTP (Male) |
| Fiber Type | OM4 |
| Polarity | B |
| Unit Dimensions | 1.2 x 3.5 x 4.7 in |
| Color | Black |
| Warranty | Lifetime limited warranty |
| Ports | 6 |
|---|---|
| Side B Connector Type | 12-Strand MTP (Male) |
| Connectivity Type | Base-8 |
| Max Insertion Loss | 0.35 dB |
| Unit Weight | 0.57 lbs |
| Material | Steel |
