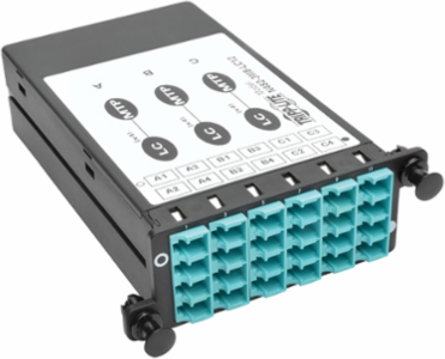

Tripp Lite N482-3M8-LC12 40/100Gb Breakout Cassette, 12 Ports, OM4 MTP/MPO to LC Duplex
- MPN: N482-3M8-LC12
- UPC: 037332200327
- PPN: TRP-N482-3M8-LC12
CAD
$1148.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

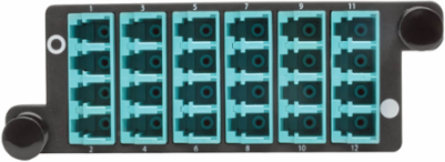

Installs in select Tripp Lite fiber enclosure panels to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications.
Features

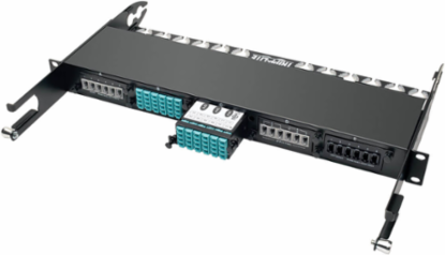

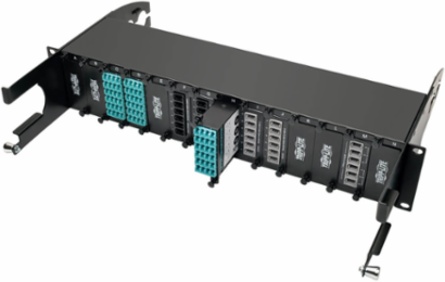

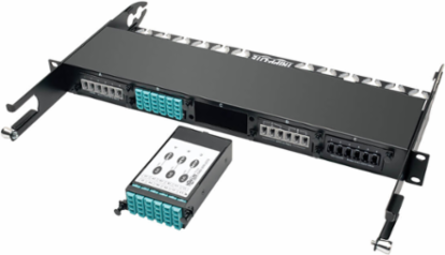

- For use with Tripp Lite N482-01U or N482-02U chassis
- Simple installation with no tools required
- Factory-terminated OM4 connectors
- Supports 40 GbE internally using OM4 fiber optic cable
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections
- Designed for use with recommended Tripp Lite cabling
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- Elegant, Simple Solution for 40Gb to 10Gb, or 100Gb to 25Gb, LC Cable Connections
- Designed Specifically for Use with Tripp Lite Cabling
- Simple Fiber Installations Save Time and Money
- Easy to Modify, Upgrade or Expand Fiber Infrastructure by Adding or Swapping Cassettes
- Premium Construction for Optimal Performance
Specifications
Additional
- Ports
- 12
- Connector Type Side A

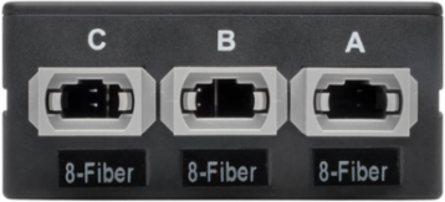

- 8-strand MTP (Male)
- Warranty
- Lifetime limited warranty
- Weight
- 0.50 lbs
- Data Rate Support
- 10Gb, 25Gb, 40Gb, 100Gb
- Compliance
- IEEE 802.3ae, ANSI T11.2
- Installation
- No tools required
TechnologyMultimode MTP/MPO
Connector Type Side BLC Duplex (Female)
Physical Dimensions (HxWxD)2.00 x 7.60 x 4.80 in
Fiber TypeOM4
PolarityPolarity B
Base-8 Fiber CompatibilitySupports QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR, QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR
Chassis CompatibilityTripp Lite N482-01U 1U, N482-02U 2U
