Tripp Lite

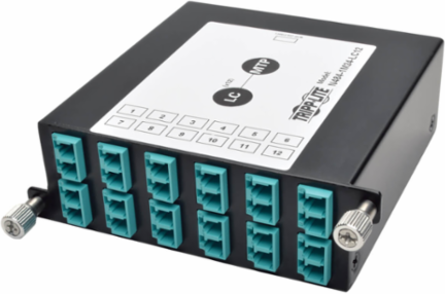

Tripp Lite N484-1M24-LC12 100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex

100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
  • MPN: N484-1M24-LC12
  • UPC: 037332187178
  • PPN: TRP-N484-1M24-LC12

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$873.97/ EA

Description

100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex

Features

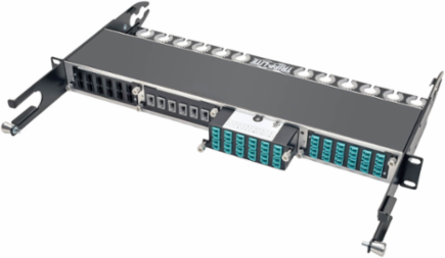

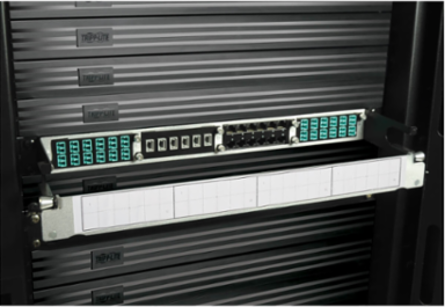

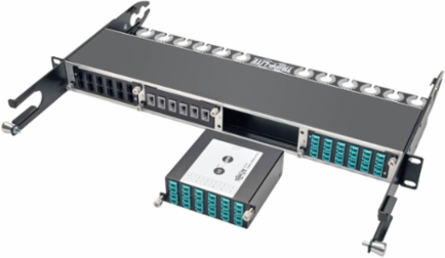

  • High Density Fiber Cassette for use with Tripp Lite's N484-00U and N484-01U chassis'
  • 100/120Gb to 10Gb Breakout Cassette, with (x12) LC connections to a 24-Fiber MTP/MPO connection ( Male w/Pins )
  • 24-Fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity
  • Guaranteed compatibility when used with recommended Tripp Lite cabling
  • Cassette designed specifically for use with Tripp Lite cables, such as the N820-, N821-, and N846-Series cables
  • Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
  • Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
  • This product is covered by a Lifetime Limited Warranty ( coverage details )

Specifications

Features & Specifications

Technology
Multimode; MTP/MPO

Certifications

Approvals
RoHS, REACH

Connections

Ports
12
Side B - Connector 1

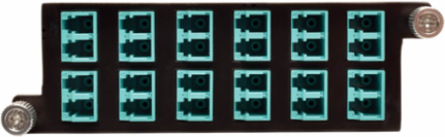

LC DUPLEX (FEMALE)

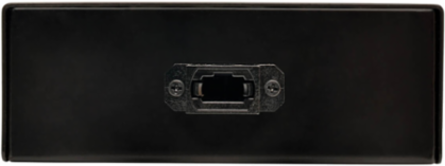

Side A - Connector 124-STRAND MTP (MALE)

Physical

Color
Black
Shipping Weight (lbs.)
0.84
Unit Weight (lbs.)
0.7
Shipping Dimensions (hwd / in.)5.91 x 7.68 x 1.57
Unit Dimensions (hwd / in.)1.4 x 4.4 x 3.8

Environmental

Operating Temperature Range
-4 to 122 F (-20 to 50 C)

Overview

UPC Code
037332187178

Warranty

Product Warranty Period (Worldwide)
Lifetime limited warranty
