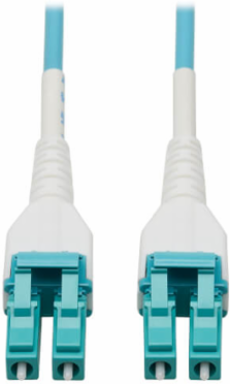

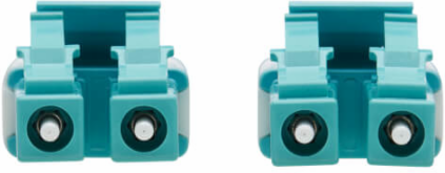

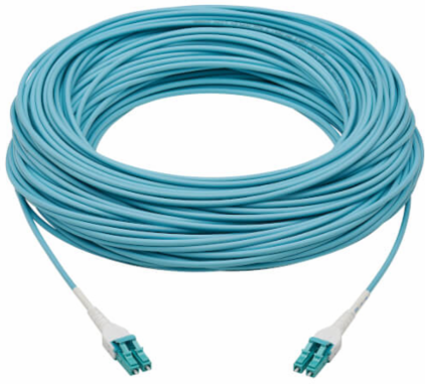

Tripp Lite N821100MAQAR Fiber Optic Cable, 100G Multimode OM4, Duplex LC/LC, Armored, LSZH, Aqua, 100 m
- MPN: N821100MAQAR
- UPC: 037332264381
- PPN: TRP-N821-100M-AQ-AR
CAD
$726.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
100G Duplex Multimode 50/125 OM4 Armored Fiber Optic Cable (LC/LC Duplex M/M), LSZH, Aqua, 100 m (328 ft.)
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 100 m (328.1 ft)
- Side A - Connector 1
- LC Duplex (Male)
- Optical Port
- LC
- Armored Cable
- Yes
- Clad Diameter
- 125
- Primary Coating Diameter
- 550
Number of Fibers2
Side B - Connector 1LC Duplex (Male)
Endface PolishPC
Cable Outer Diameter3.0 mm
Core Diameter50
Minimum Bend Radius≤30mm
Performance
- Network Compatibility
- 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps
- Attenuation @ 850NM
- 3.0 dB/km
- Operating Temperature Range
- -4° to 140°F (-20° to 60°C)
- Storage Temperature Range
- -4° to 140°F (-20° to 60°C)
Wavelength1300nm; 850nm
Attenuation @ 1300NM1.0 dB/km
Operating Humidity Range5% to 85% RH, Non-Condensing
Storage Humidity Range5% to 85% RH, Non-Condensing
Material
- Technology
- Multimode
- Cable Jacket Material
- LSZH
- Connector Color
- Aqua; White
Material of ConstructionOuter Jacket: PVC (LSZH Rating); Inner Flexible Steel Tube: SUS204 (Armored)
Cable Jacket ColorAqua
Cable Jacket RatingOFNR
Reference
- Product Warranty Period
- Lifetime limited warranty
