Tripp Lite PDU3MV6H50 12.6kW 3-Phase Metered PDU, 208V Outlets (36 C13 & 9 C19) Hubbell 50A CS8365C, 6ft Cord, 0U Vertical, TAA
Tripp Lite PDU3MV6H50 12.6kW 3-Phase Metered PDU, 208V Outlets (36 C13 & 9 C19) Hubbell 50A CS8365C, 6ft Cord, 0U Vertical, TAA
- MPN: PDU3MV6H50
- UPC: 037332163868
- PPN: TRP-PDU3MV6H50
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1951.79/ EA
Description
12.6kW 3-Phase Metered PDU, 208V Outlets (36 C13 & 9 C19) Hubbell 50A CS8365C, 6ft Cord, 0U Vertical, TAA
Features

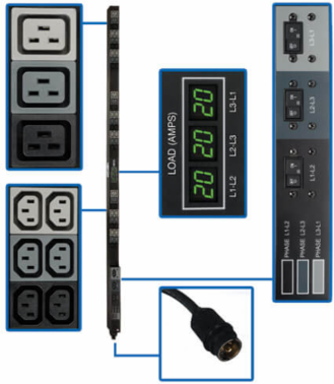

- Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports load current per-phase via set of 3 built-in current meters
- Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 45 208V outlets total (36 C13, 9 C19)

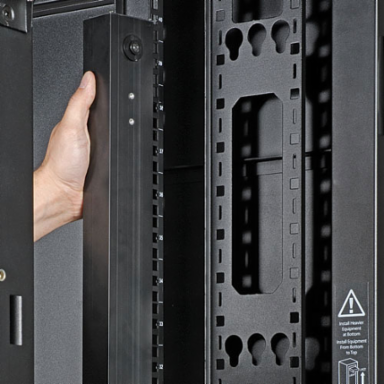

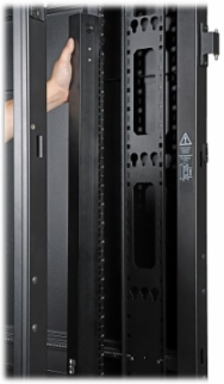

- Toolless button-mount installation; cord retention brackets included
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1 (USA, Canada), NOM (Mexico), Class A (Emissions), ROHS, TAA Compliant
Physical
- Form Factors Supported
- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- PDU Form Factor
- Vertical (0U)
- Shipping Weight (lbs.)
- 21.40
- Unit Weight (lbs.)
- 14.5
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)6.00 x 10.00 x 77.30
Unit Dimensions (hwd / in.)70 x 2.65 x 1.71
User Interface, Alerts & Controls
- Reported Load Segments

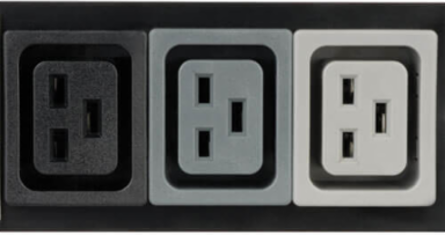

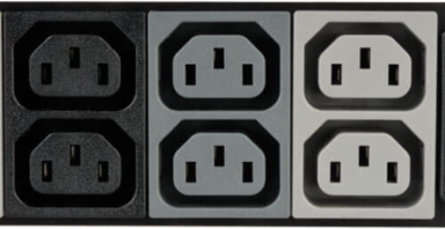

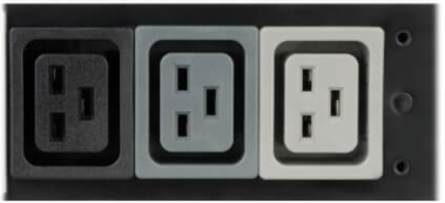

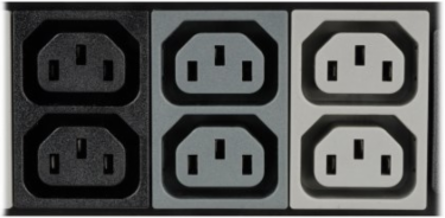

- Supports local monitoring of current for each output phase (20A balanced max per L1-L2, L2-L3 and L3-L1); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets; L2-L3 feeds dark-gray outlets; L3-L1 feeds light-gray outlets
- Front Panel LEDs
- n/a

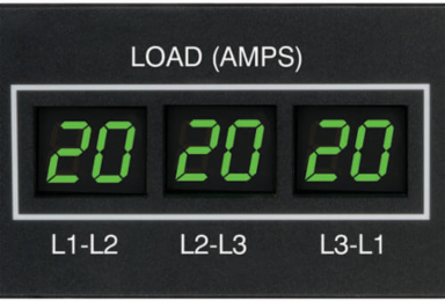

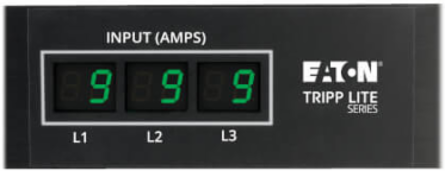

Front Panel LCD DisplaySet of 3 digital current meters report current in amps for each output phase
Switchesn/a
Input
- PDU Input Voltage
- 208
- Maximum Input Amps
- 35
- Input Phase
- 3-Phase
Recommended Electrical Service50A 208V with Hubbell CS8365C outlet

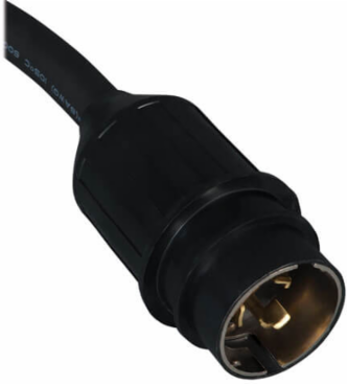

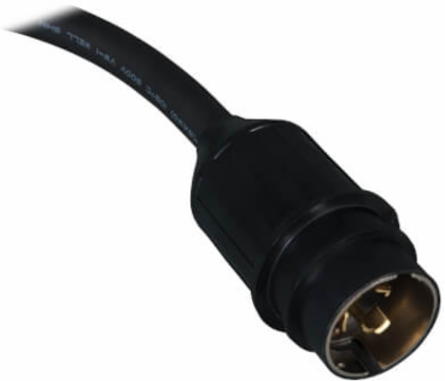

PDU Plug TypeHUBBELL CS8365C 50A
Input Cord Length (ft.)6
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (36) C13; (9) C19
- Overload Protection
- 3 20A circuit breakers, 1 per outlet bank
Output Capacity Details12.6kVA (208V) total capacity; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage208
Environmental
- Operating Temperature Range
- 32 to 122F (0 to 50C)
- Relative Humidity
- 5-95% non-condensing
- Operating Elevation (m)
- 0-3000
Storage Temperature Range-30°C to +60°C (-22°F to +140°F)
Operating Elevation (ft.)0-10,000
Overview
- UPC Code
- 037332163868
PDU TypeMetered
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
